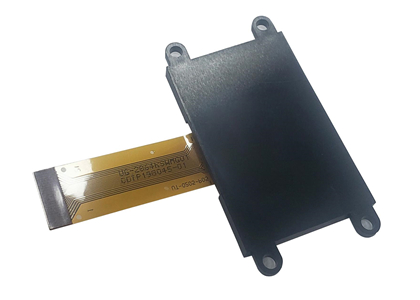

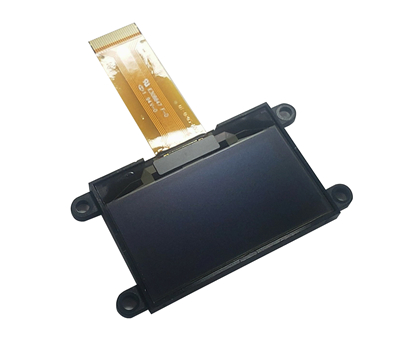

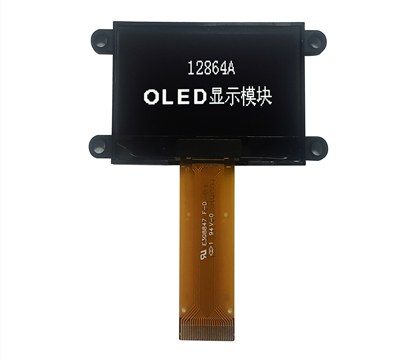

128*64 1.54” OLED Display DG-12864A-1309
Display type: OLED display
Screen size: 1.54 inch
Resolution: 128x64

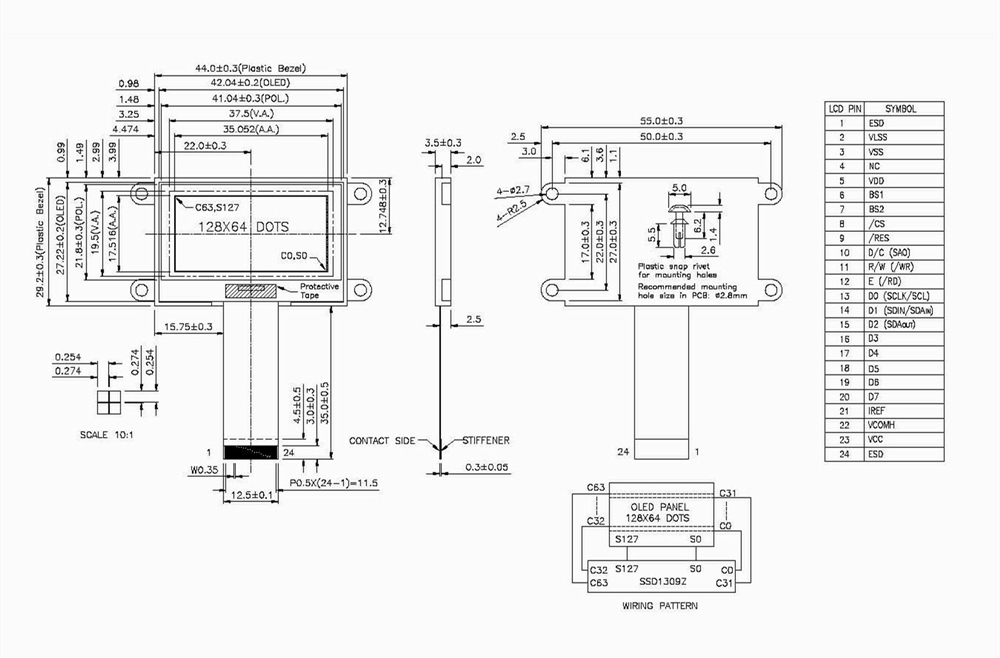

Outline Dimension: 44*29.2*3.5mm
Driver IC: SSD1309Z
Interface: 8 bits parallel or SPI I2C
VCC: 3.3V
Connector: 24 pin FPC
Top: 20~70C
This product can be customized according to client's requirements.
- Description
