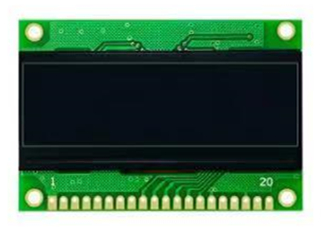

128*32 2.23” OLED DG-223B

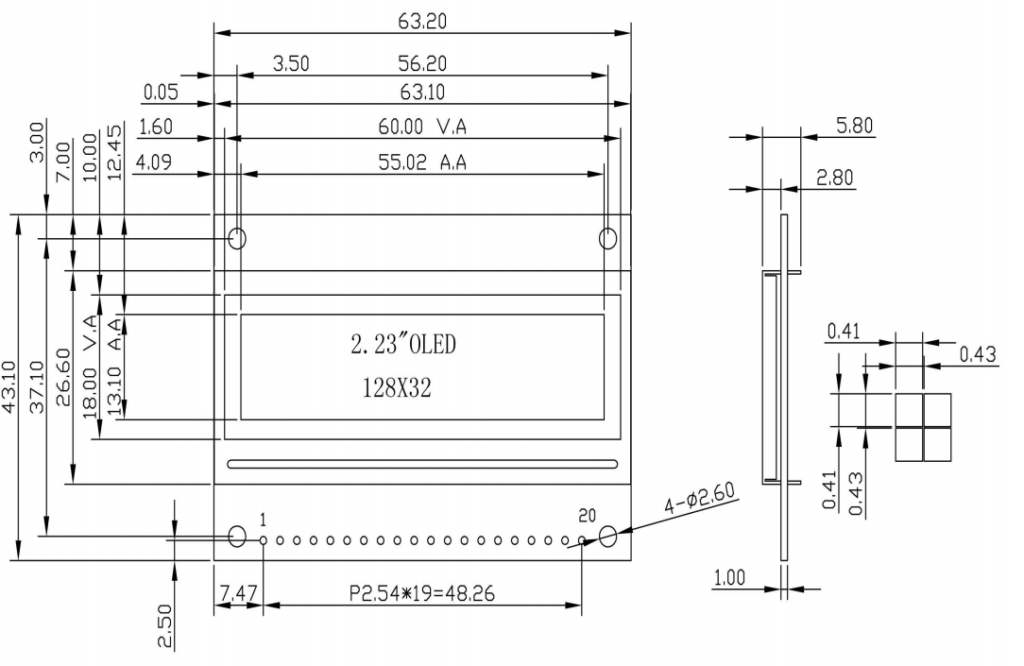

Module Size: 63.2L×43.1W×5.8H mm
View Area: 60×18 mm
Effective Area :128×32dots
Dot Size: 0.39×0.39 mm
Dot Pitch :0.43×0.43 mm

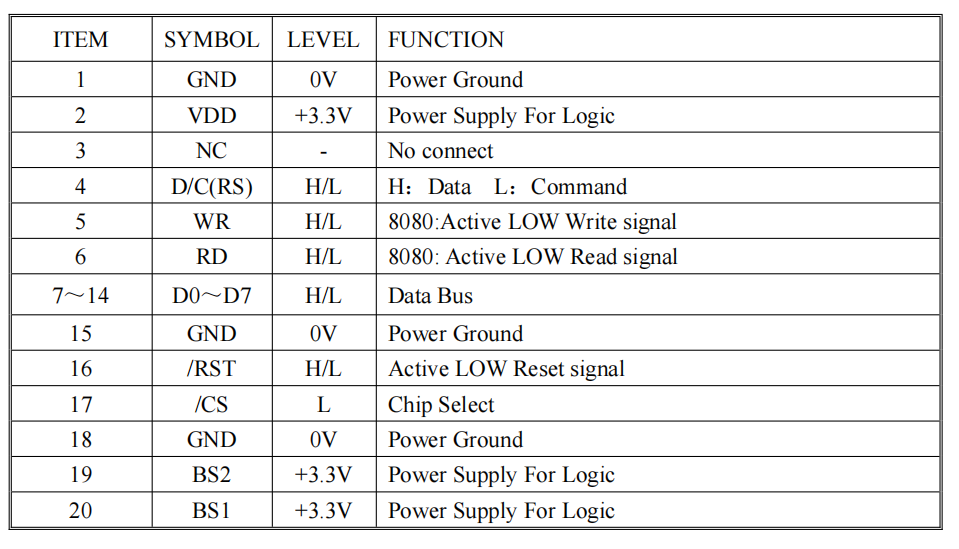

Interface: 8-BIT 68XX/80XX Parallel,4-wire SPI,I2C
Driver IC:SSD1305
Font Color:YELLOW/WHITE/GREEN
Operating Temperature: -30 to 85 ℃
Storage Temperature: -40 to 90 ℃
- Description
