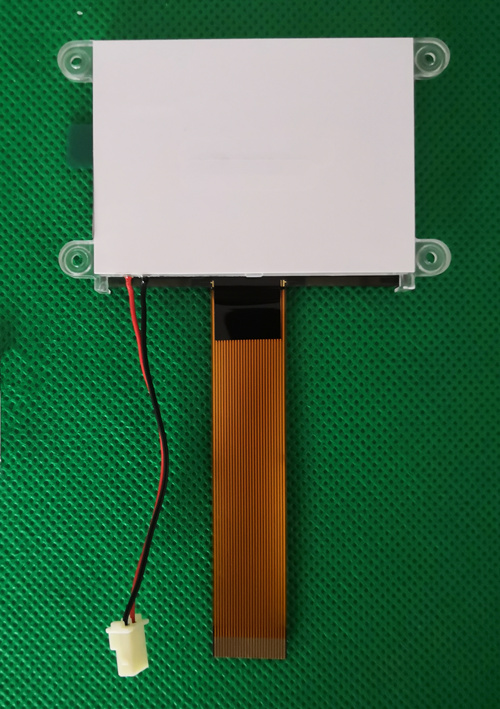

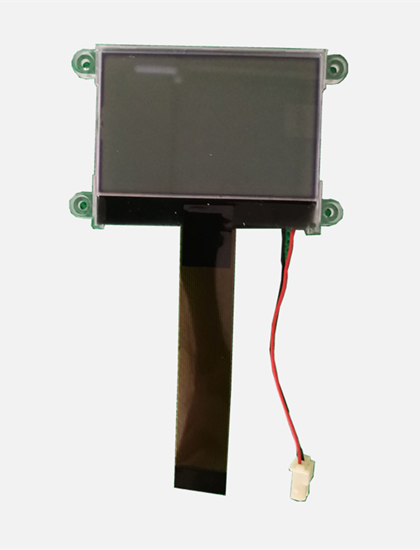

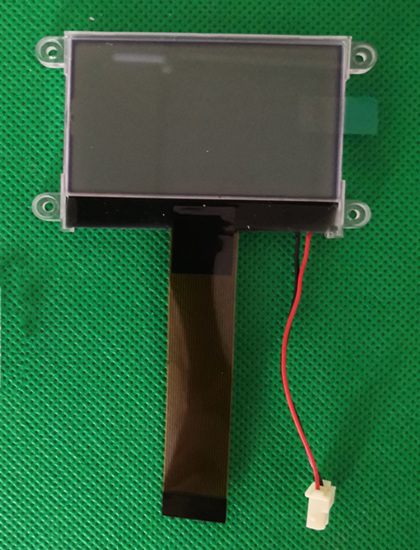

COG 12864-6843 White

LCM Type COG
Storage Temperature: -30℃~+80℃ ℃
Operating Temperature: -20℃~+70℃ ℃
LCD Type: STN
LCD Mode: Positive ,Gray, Transflective
Viewing Direction: 6 O’clock
LCD Operating Voltage: 10.5 V
VDD:3.0 or 5.0 V
Driving Scheme: 1/65 Duty Cycle 1/9 or 1/7 Bias
IC Driver: SPLC501C
Interface/Date Transfer: Parallel interface 8080 Series
Backlight: White (Vf=3.2V@If=80mA)
Display Resolution: 128*64 dots

Module Size: 68.0 (L)*43.6(W) (not include FPC) mm
Viewing Area(V.A.): 50.0(L)* 31.5 (W) mm
Active Area(A.A.): 47.96(L)* 28.76(W) mm
Dot Size(W*H): 0.375(L)*0.45(W) mm
Dot Pitch(W*H): 0.335(L)*0.41(W) mm

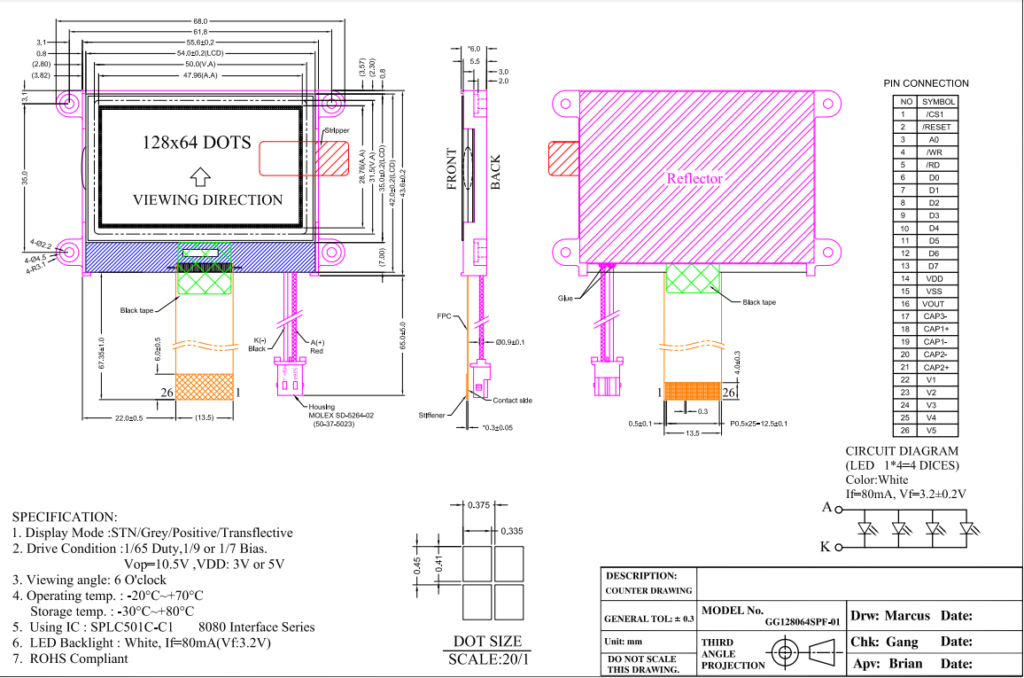

General Tolerance: Refer to Counter or Drawing mm
