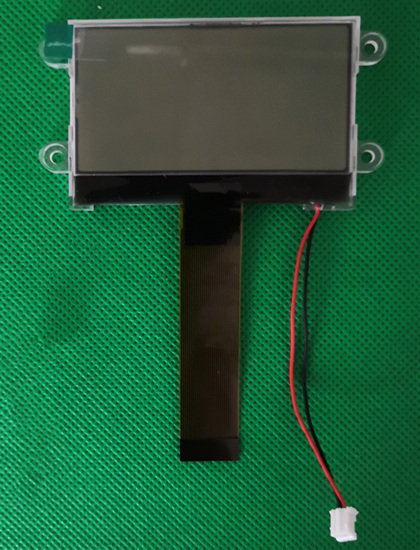

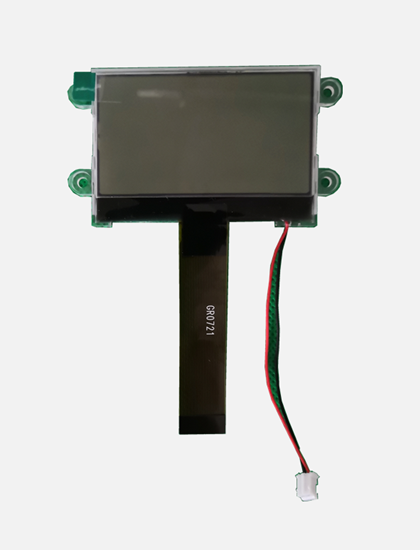

COG 12864-8045

LCM Type COG
Storage Temperature: -30℃~+80℃ ℃
Operating Temperature: -20℃~+70℃ ℃
LCD Type: FSTN
LCD Mode: Positive , Transflective
Viewing Direction: 6 O’clock
LCD Operating Voltage: 8.7 V
VDD: 3.0~3.3 V
Driving Scheme: 1/65 Duty Cycle 1/9 Bias
IC Driver: NT7538H
Interface/Date Transfer: 8080 Series Parallel interface

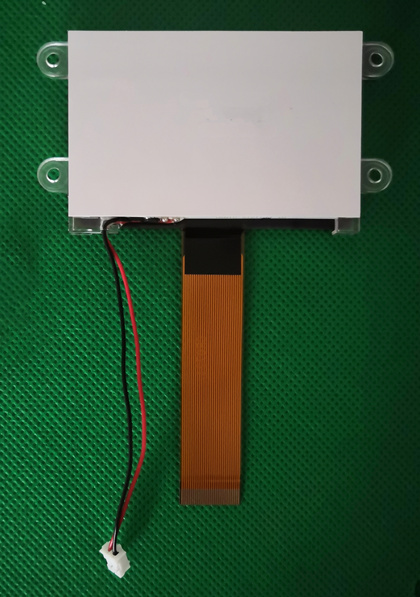

Backlight: White LED 6 chips, IF=90mA
Display Resolution 128*64 dots

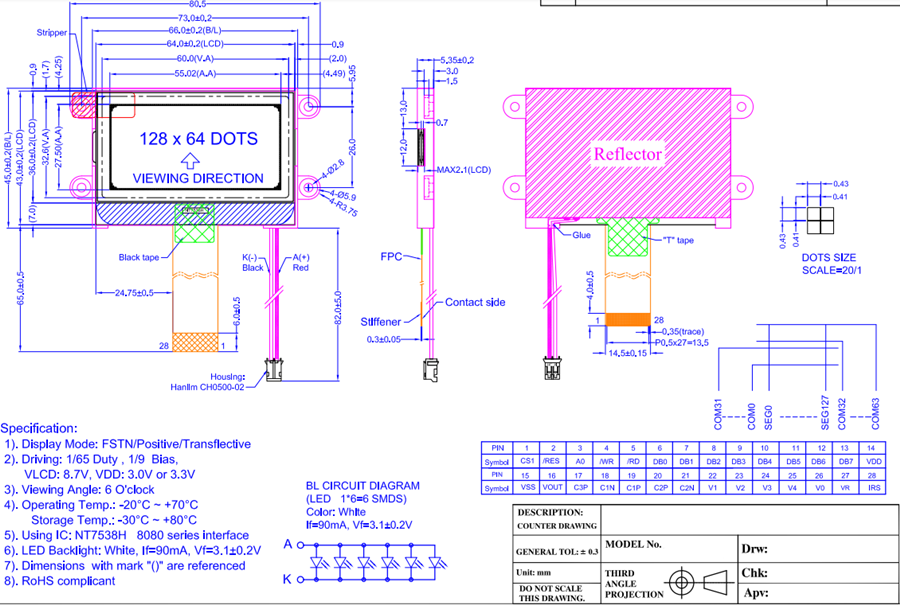

Module Size: 80.5 (L)*45.0(W) (not include FPC) mm
Viewing Area(V.A.): 60.0(L)* 32.6 (W) mm
Active Area(A.A.): 55.02(L)* 27.50(W) mm
Dot Size(W*H): 0.41(L)*0.41(W) mm
Dot Pitch(W*H): 0.43 (L)*0.43(W) mm
