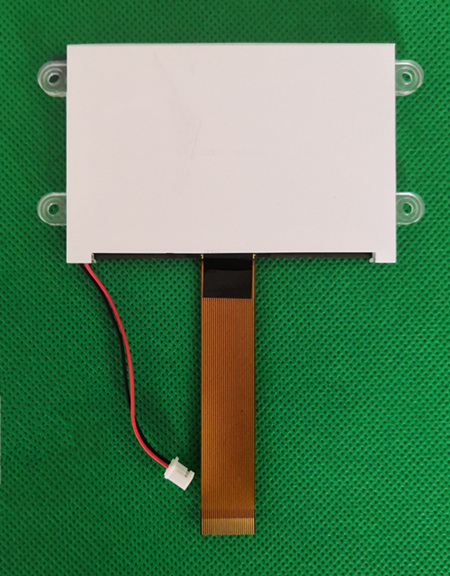

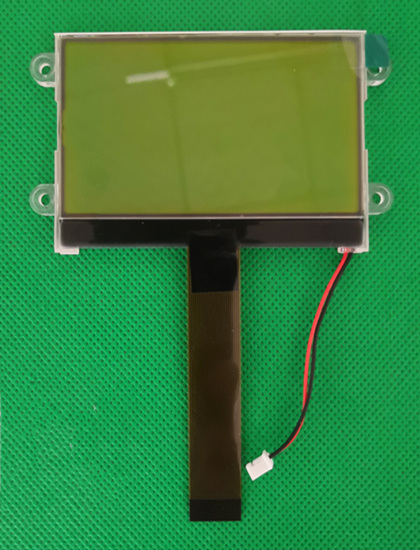

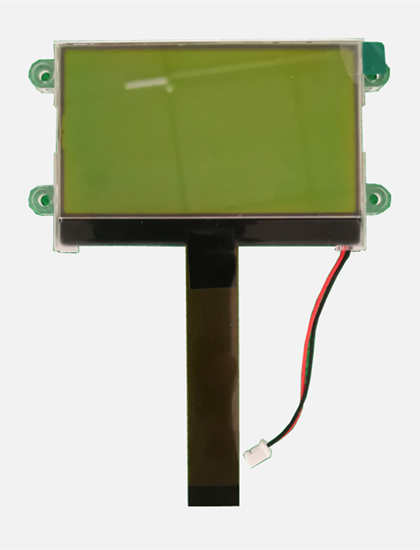

COG 12864-9352 Y-G

Format : 128*64 Dots
LCD mode : STN/Y-G/Positive/Transflective
Viewing direction : 6 O'clock
Driving scheme : 1/65 Duty, 1/7 or 1/9 Bias, VLCD=8.3V
Power Supply Voltage : VDD=3.0V
Interface : 8080 Series, 8-bit Parallel
Backlight : Side type, Yellow-Green color(Vf=4.2V)

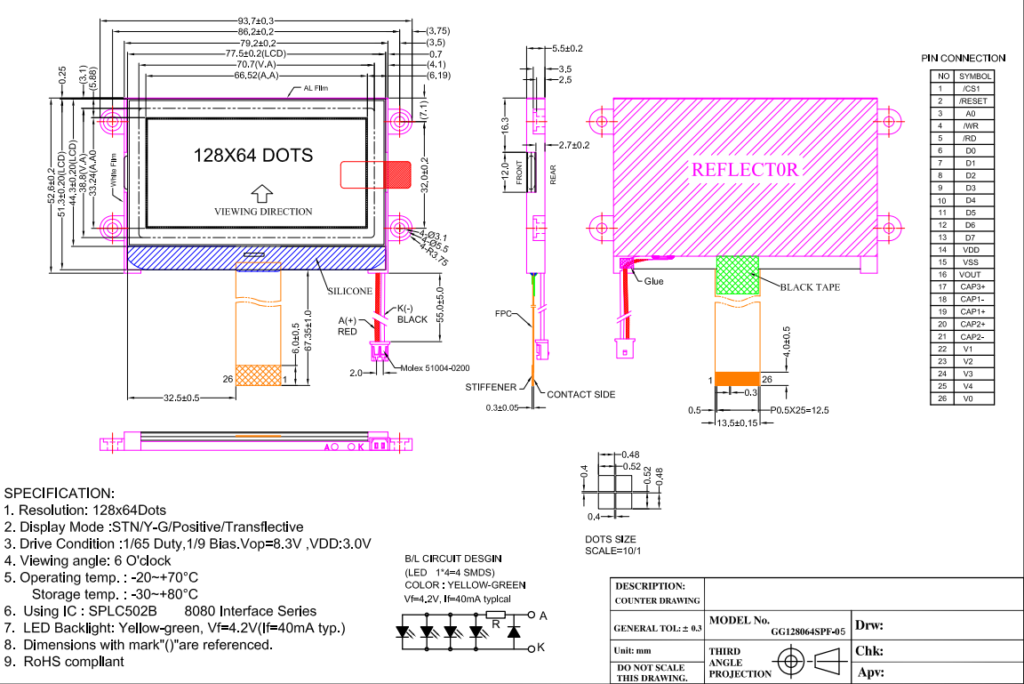

Module size: 93.70mm(L)*52.6mm(W) (Not include FPC)
Viewing area: 70.70mm(L)*38.80mm(W)
Active area: 66.52mm(L)*33.24(W)
Dot pitch: 0.52mm(L)*0.52mm(W)
Dot size: 0.48mm(L)*0.48mm(W)
