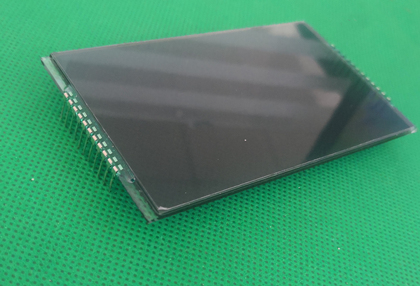

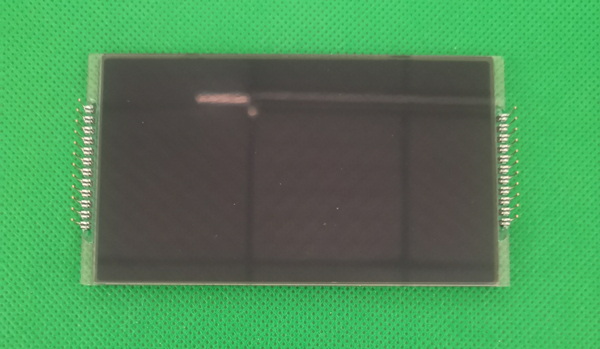

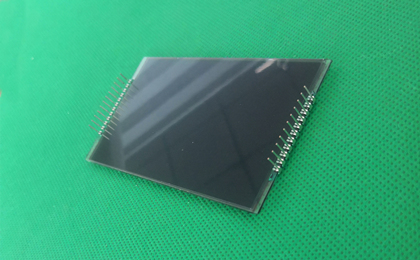

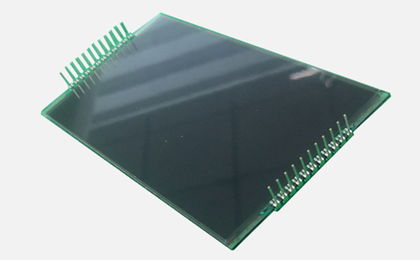

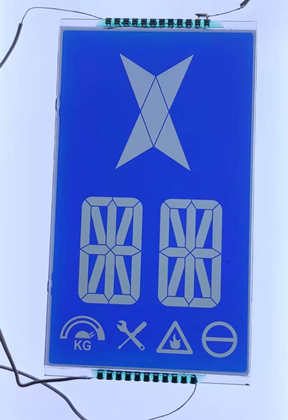

DG19068 LCD for Elevator Screen
Polarizer: Transmissive adhesive
Display Mode: STN, Negative Blue,
Outline dimension: 56*100*2.8 or 109*140*2.8 mm
Driving Method: 1/2 duty, 1/2 bias, 5.0V
Operating Temp: -20 to 70°C
Storage Temp: -30 to 80°C
Viewing Direction: 12 O’clock
Connector: PIN
This product can be modified according to client's requirements.
