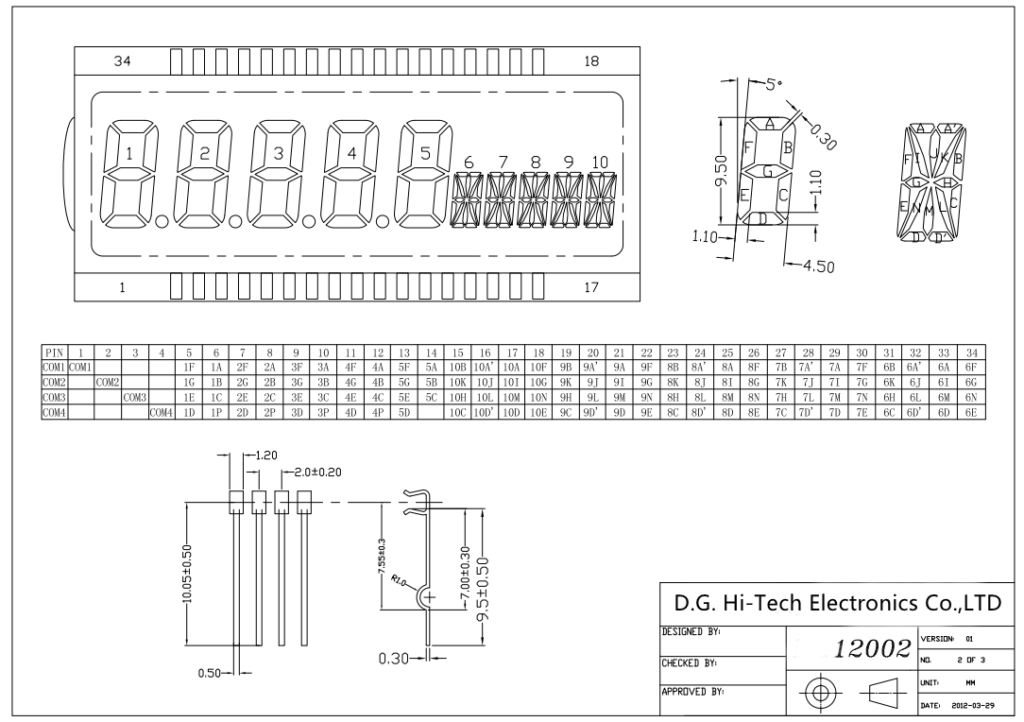

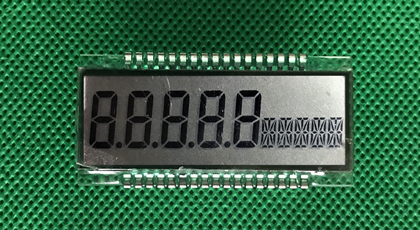

LCD 12002
Display Type: TN
Polarizer: Reflective/Positive
Driving Method: 1/4 Duty; 1/3 Bias
Viewing Direction: 6 O’clock
Operating Temperature: 0°C to 50°C
Storage Temperature: -10°C to 60°C
Operating Voltage: 3.6V

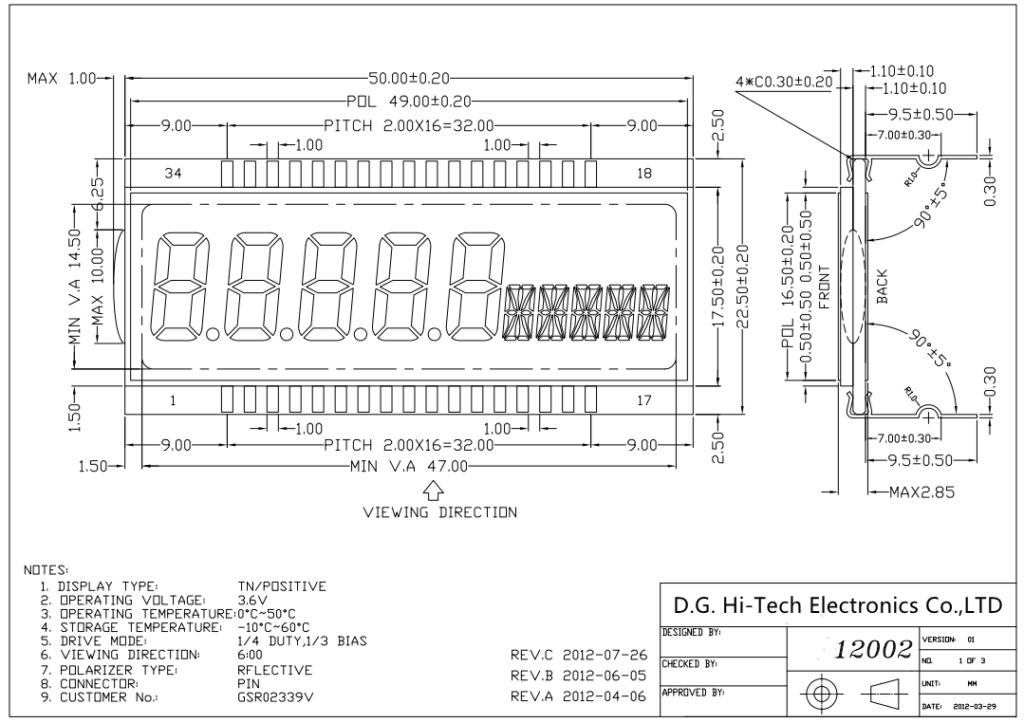

Outline Dimension: 50*22.5*2.85 mm
Connector: PIN
The product can be produced according to the customer’s specific requirements.
