LCD Module 12864FL

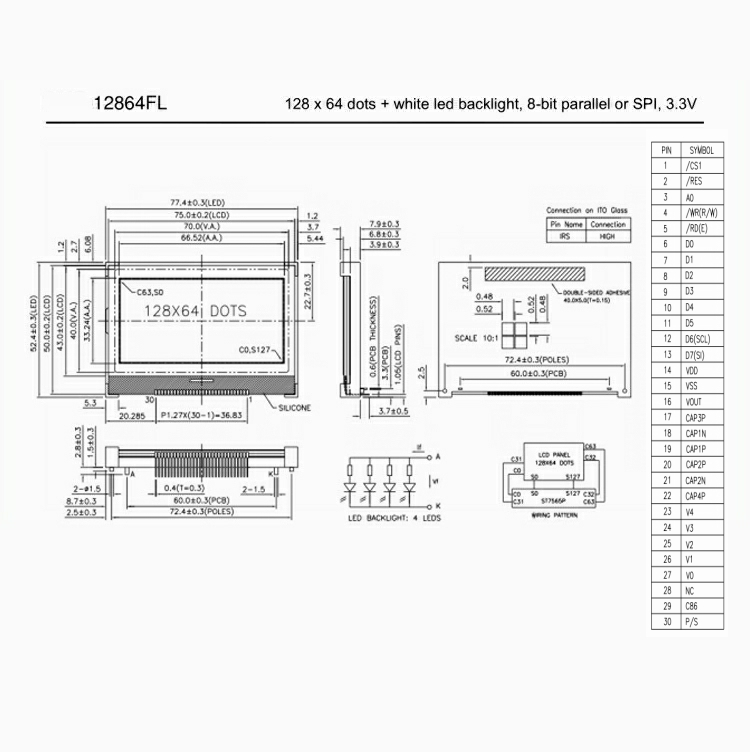

Module size (W*H*T): 77.4*52.4*11.6 mm
Viewing Area (W*H): 70.0*40.0 mm
Dot Pitch (W*H): 0.52*0.52 mm
Dot size (W*H): 0.48*0.48 mm
Weight: 45 g

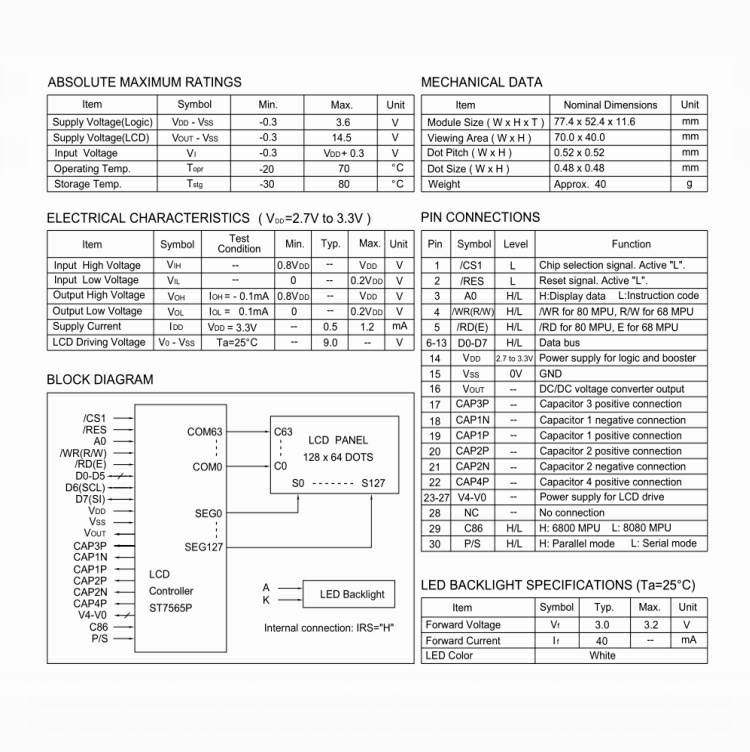

Supply voltage (Logic): -0.3 to 3.6V
Supply voltage (LCD): -0.3 to 14.5V
Operating temp: -20°C to 70°C
Storage temp: -30°C to 80°C
