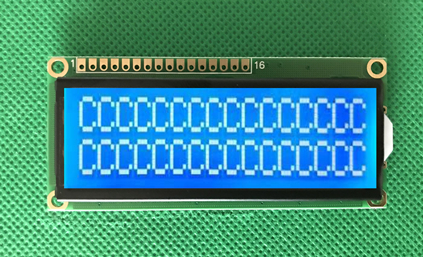

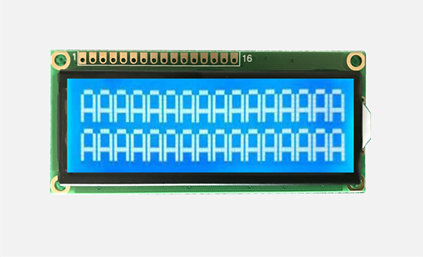

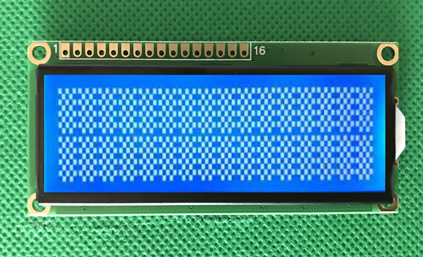

LCD Module 1602A

Characteristics: 16*2 Lines
LCD Model: STN, Yellow-Green/Blue/Grayish/Orange
Controller IC: SPL780D or Equivalent
Driving Method: 1/16 Duty; 1/5 Bias
Viewing Angle: 6 o'clock
6800 serial 8-Bit/4-Bit MPU Interface
Backlight: LED
Operating Temperature: -20 to 70°C
Storage Temperature: -30 to 80°C
Module Size: 80.0L*36.0W*12.1H mm
View Area: 64.5*16.0 mm
Number of Character: 16*2 Lines
Character Size: 2.96*5.56 mm
Character Pitch: 3.55*5.95 mm
The product can be produced according to the customer’s specific requirements.
