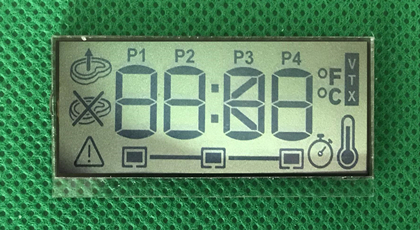

LCD 17009

Display Type: TN/Positive
Front Polarizer: Transmissive, Adhesive
Back Polarizer: Reflective, Adhesive
Driving Method: 1/3 Duty; 1/2 Bias
Viewing Direction: 12 O’clock
Operating Temperature: 0°C to 70°C
Storage Temperature: -10°C to 80°C
Operating Voltage: 5.1V

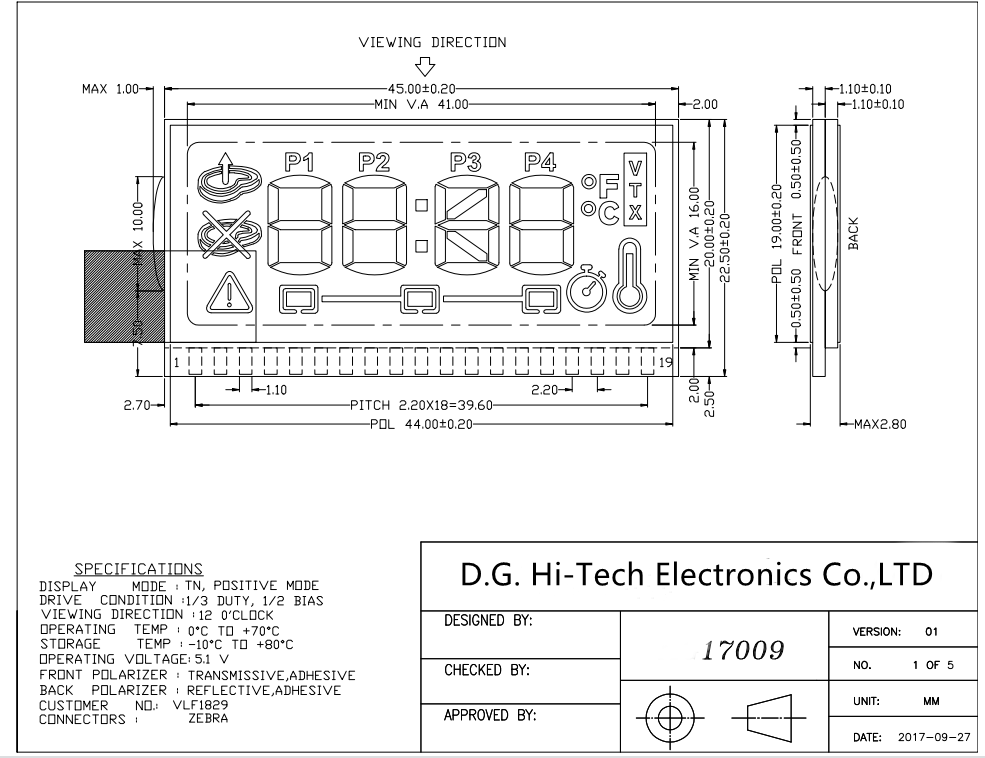

Outline Dimension: 45*22.5*2.8 mm
Connector: ZEBRA
The product can be produced according to the customer’s specific requirements.
