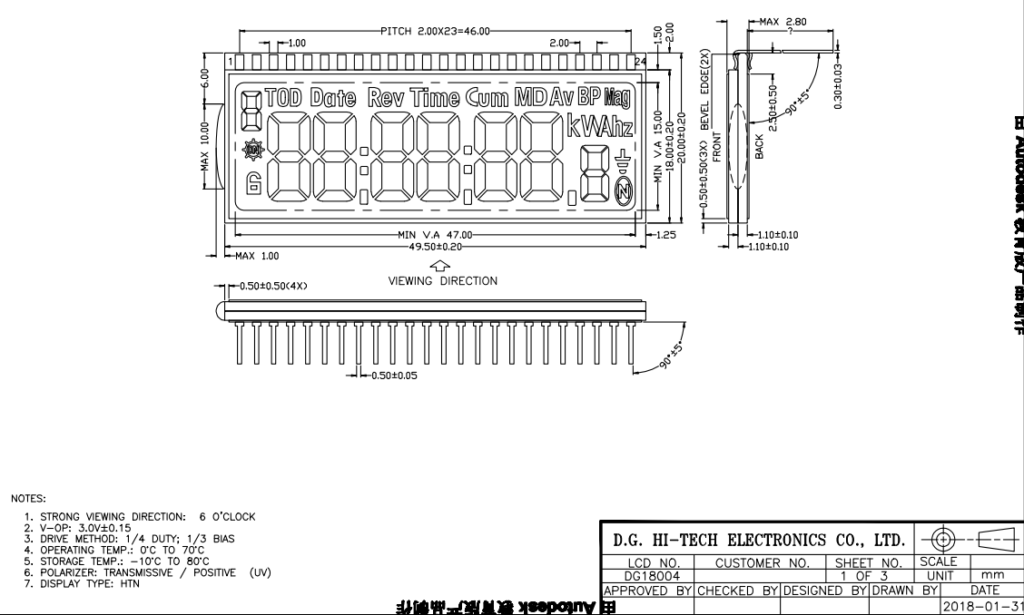

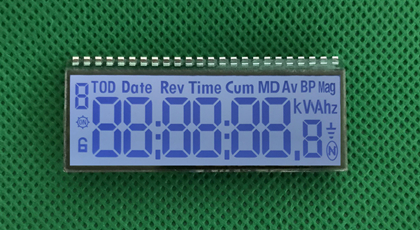

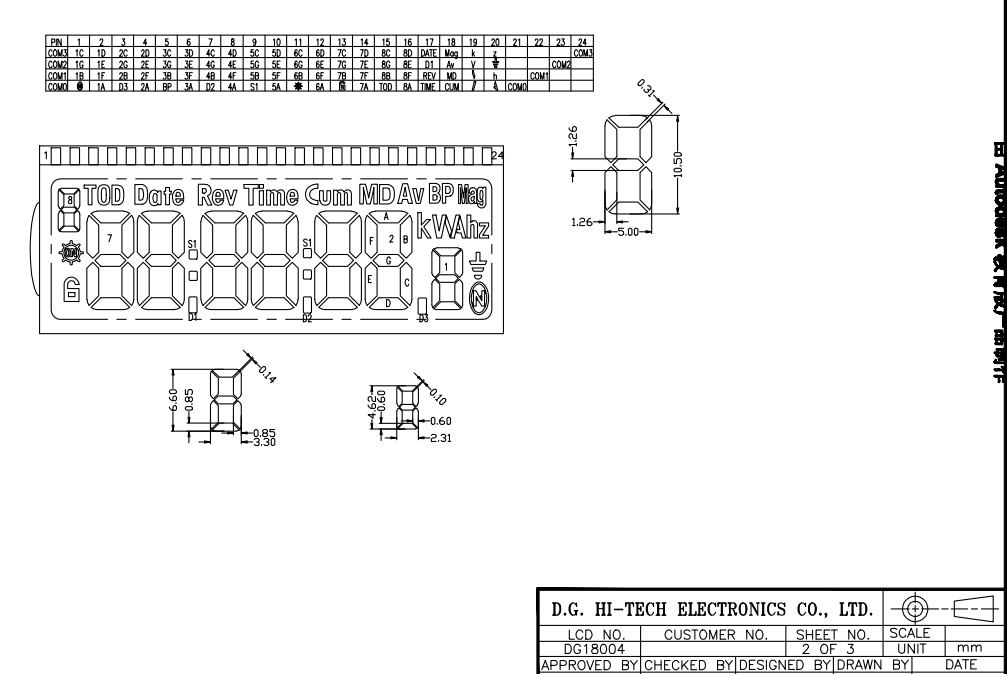

LCD 18004
Display Type: HTN
Polarizer: Transmissive/Positive
Driving Method: 1/4 Duty; 1/3 Bias
Viewing Direction: 6 O’clock
Operating Temperature: 0°C to 70°C
Storage Temperature: -10°C to 80°C
Operating Voltage: 3.0V +- 0.15V
Outline Dimension: 49.5*20.0*2.8 mm
Connector: PIN
The product can be produced according to the customer’s specific requirements.
