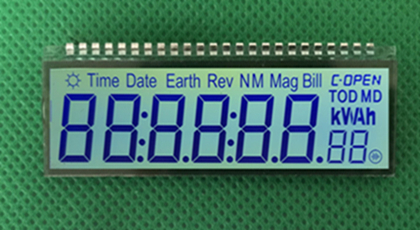

LCD 18008

Display Type: STN Yellow/Green
Polarizer: Transmissive/Positive
Driving Method: 1/4 Duty; 1/3 Bias
Viewing Direction: 6 O’clock
Operating Temperature: -20°C to 70°C
Storage Temperature: -30°C to 80°C
Operating Voltage: 3.15V +- 0.15V

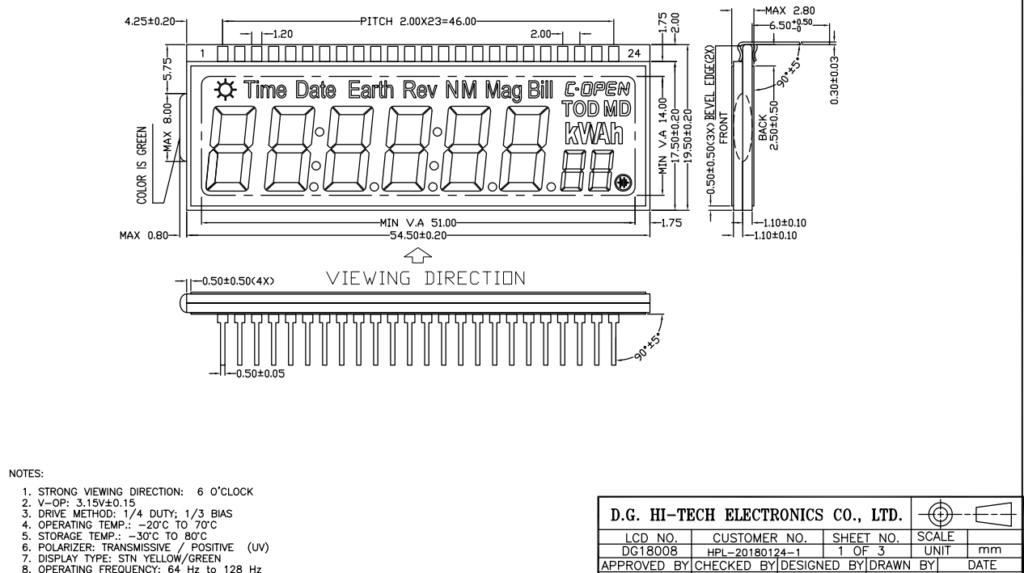

Outline Dimension: 54.5*19.5*2.8 mm
Connector: PIN


The product can be produced according to the customer’s specific requirements.
