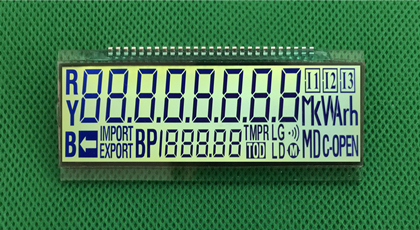

LCD 18015
Display Type: STN Yellow/Green
Polarizer: Transmissive/Positive
Driving Method: 1/6 Duty; 1/3 Bias
Viewing Direction: 6 O’clock
Operating Temperature: -20°C to 75°C
Storage Temperature: -30°C to 80°C
Operating Voltage: 3.0V

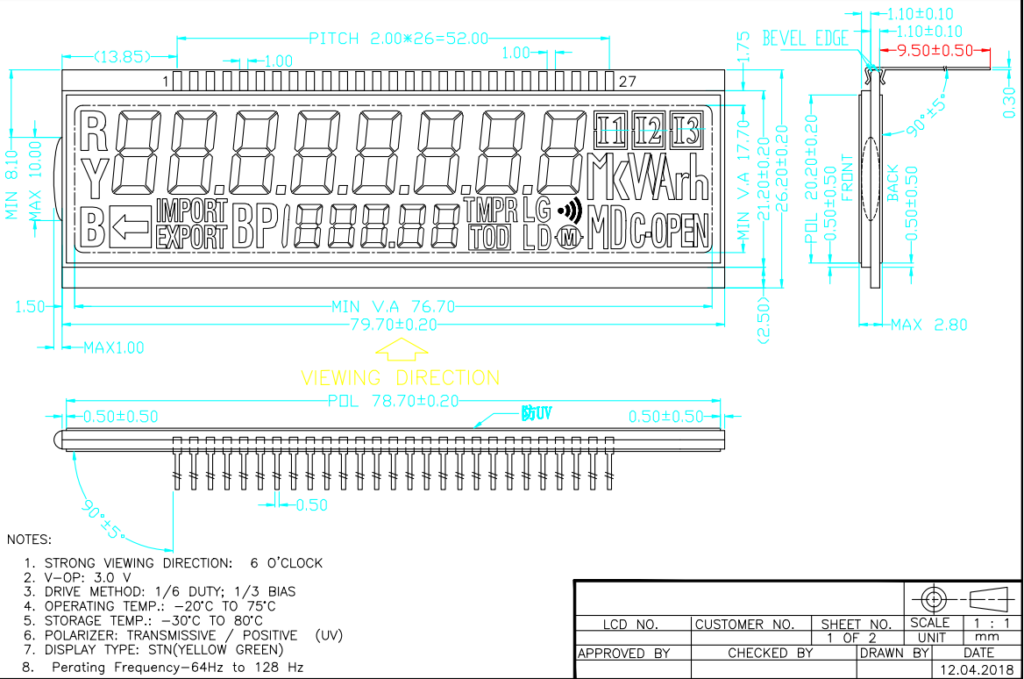

Outline Dimension: 79.7*26.2*2.8 mm
Connector: PIN
The product can be produced according to the customer’s specific requirements.
