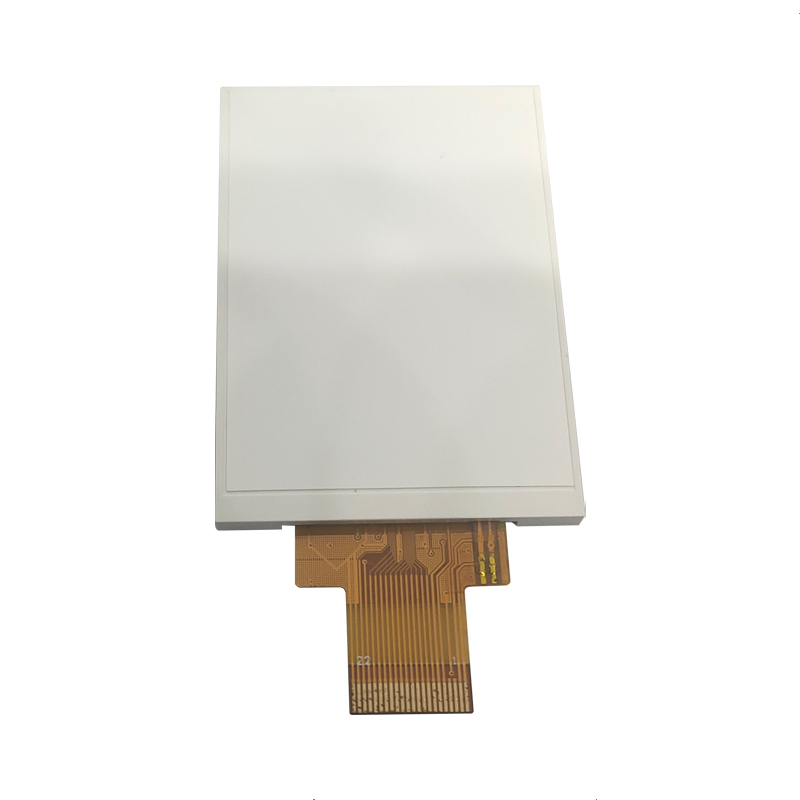

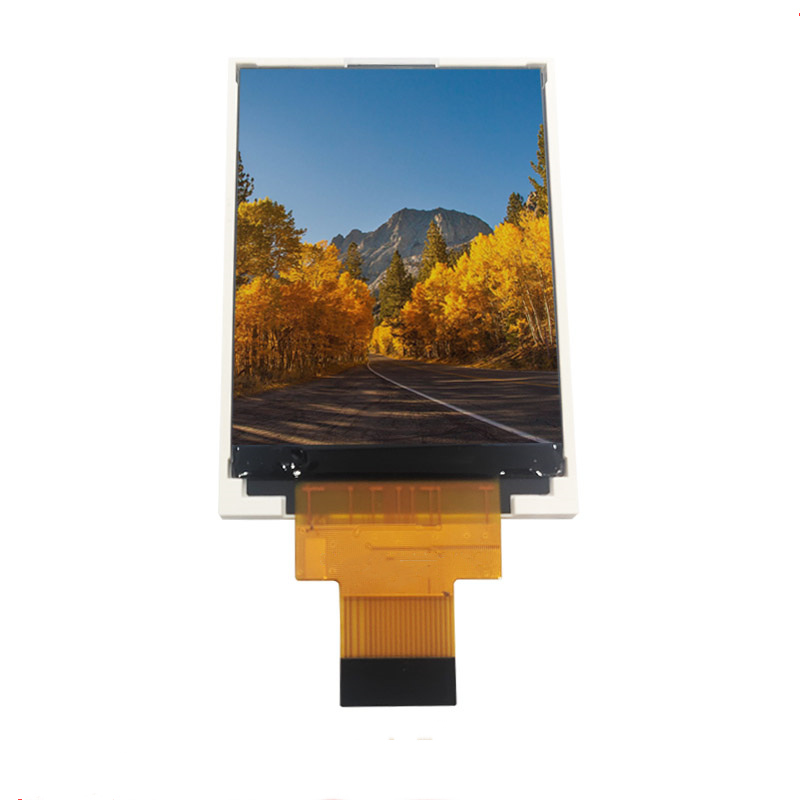

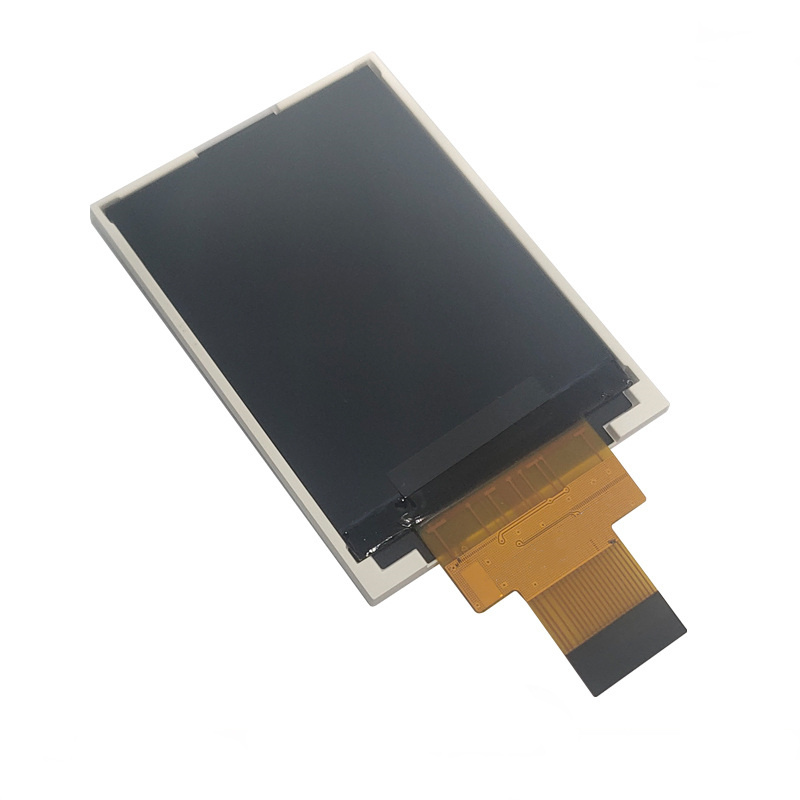

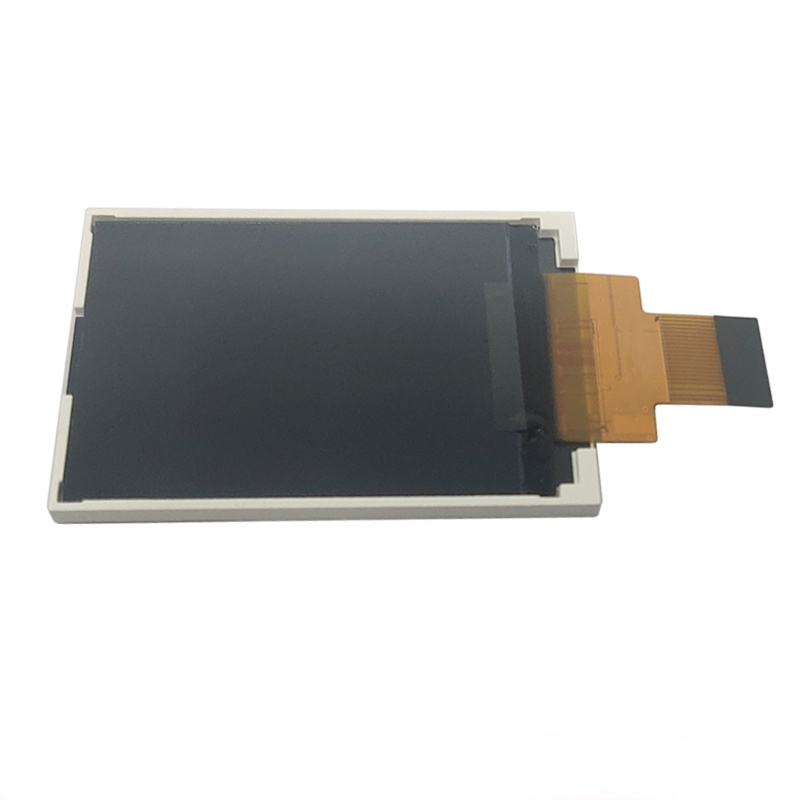

TFT LCD 2.0” 240*320
DISPLAY TYPE: 2.0"TFT

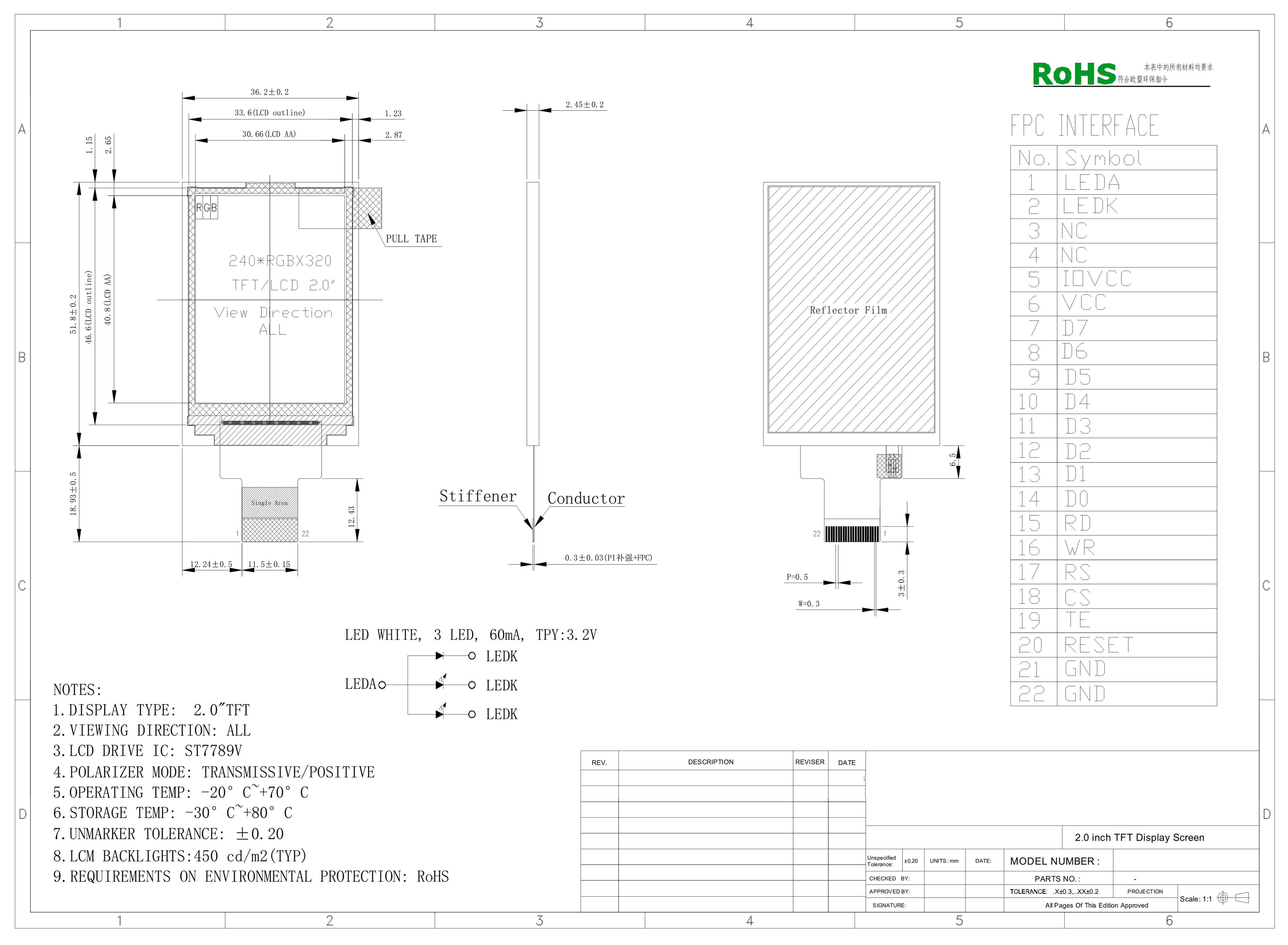

OUTLINE DIMENSION: 51.8*36.2*2.45 mm
VIEWING DIRECTION: ALL
LCD DRIVE IC: ST7789V
POLARIZER MODE: TRANSMISSIVE/POSITIVE
OPERATING TEMP: -20 - 70°C
STORAGE TEMP: -30°C~+80°C
UNMARKER TOLERANCE: ± 0.2
LCM BACKLIGHTS:450 cd/m2(TYP)
REQUIREMENTS ON ENVIRONMENTAL PROTECTION: RoHS
