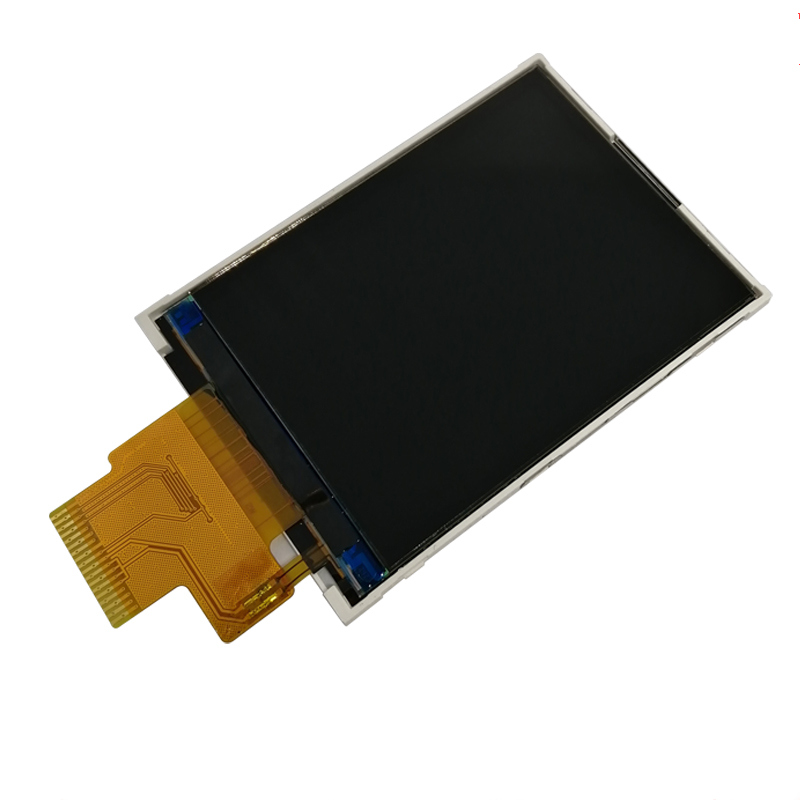

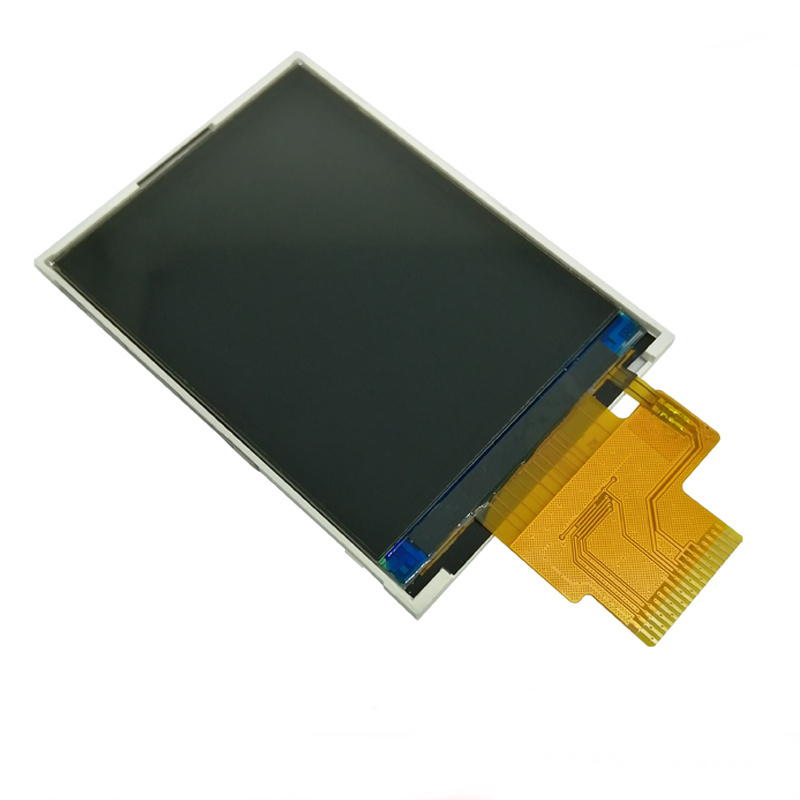

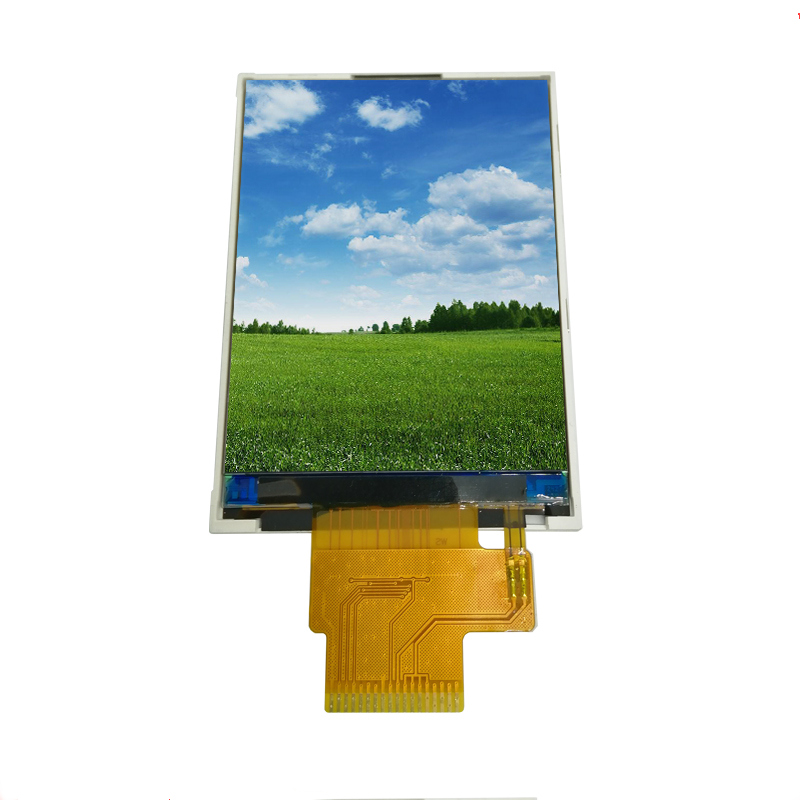

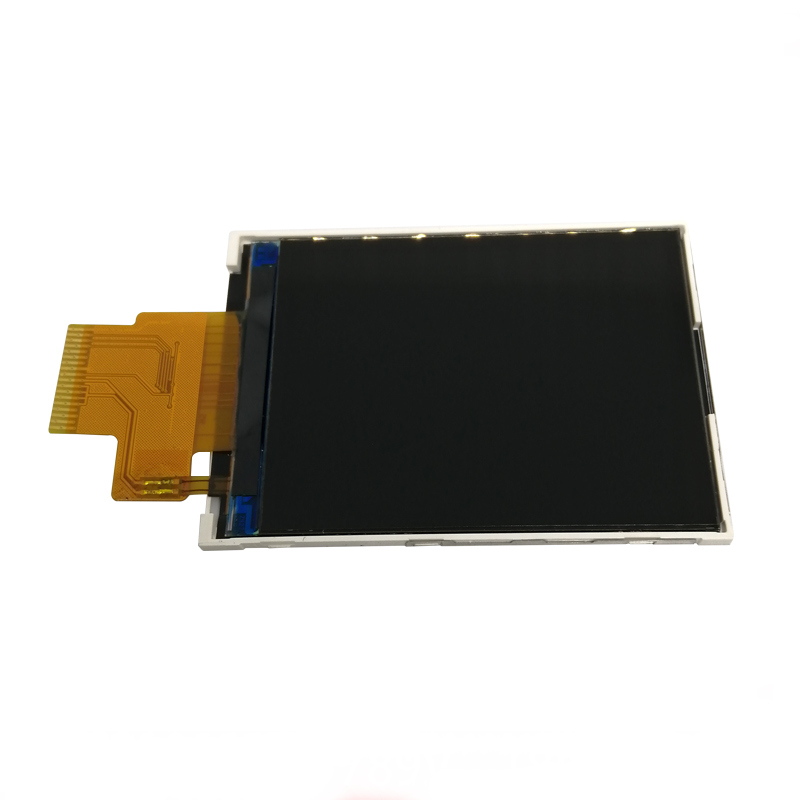

TFT LCD 2.4” TN Type 240*320

LCD type: 2.4’’TFT
Dot arrangement: 240(RGB)×320 dots
Color filter array: RGB vertical stripe
Display mode: TN / Transmission / Normally White
Eyes Viewing Direction: 12 O’clock
Driver IC: ST7789V

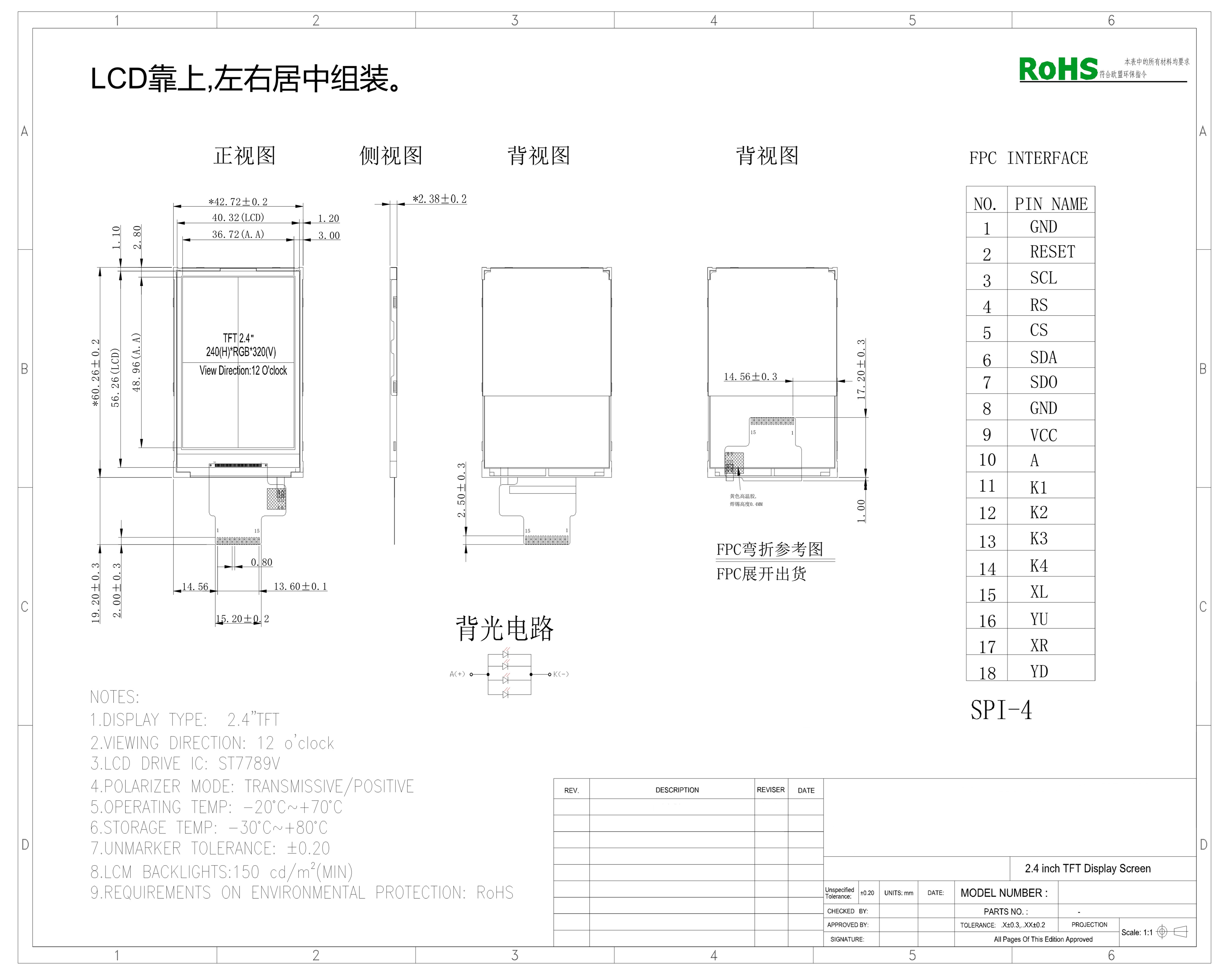

Module size: 42.72(W)×60.26(H)×2.38(T)(Exclude FPC) mm
Active area: 36.72(W)×48.96(H) mm
Interface: 4-SPI
Operating temperature: -20 ~ +70 °C
Storage temperature: -30 ~ +80 °C
BackLight: White LED*4
Brightness: 150Cd/m2
Weight: TBD
