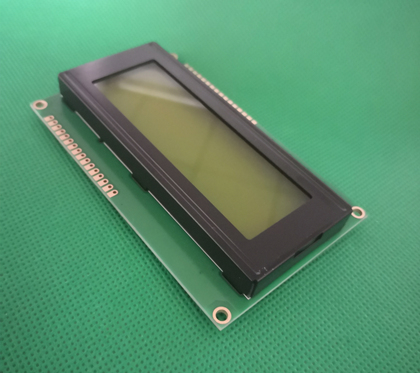

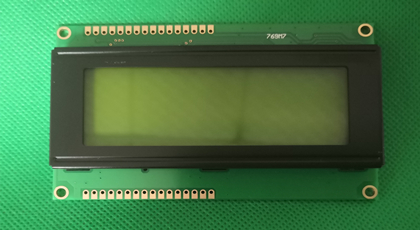

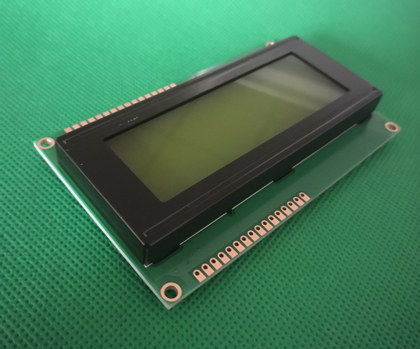

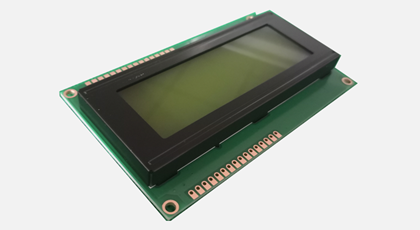

LCD 2004-9860
Display Type: STN-CH20*4 Line
Polarizer: Y-G/Transmissive/Positive
Driving Method: 1/16 Duty, 1/5 Bias, VDD:5V
Viewing Direction: 6 O’clock
Operating Temperature: -20°C to 70°C
Storage Temperature: -30°C to 80°C

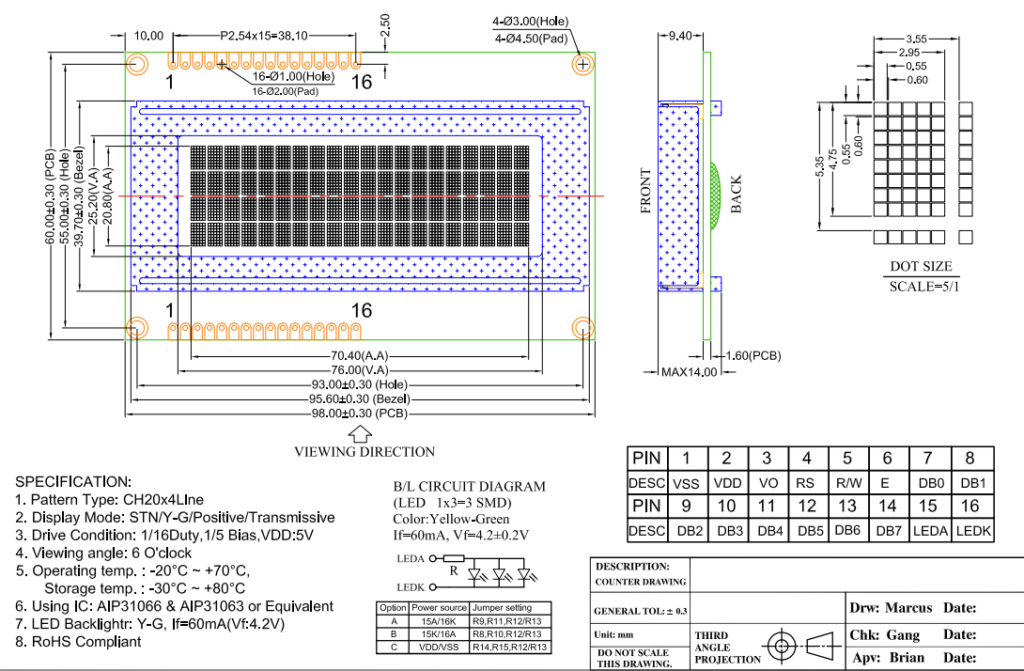

Outline Dimension: 98*60*9.4 mm
LED Backlight: Y-G
The product can be produced according to the customer’s specific requirements.
