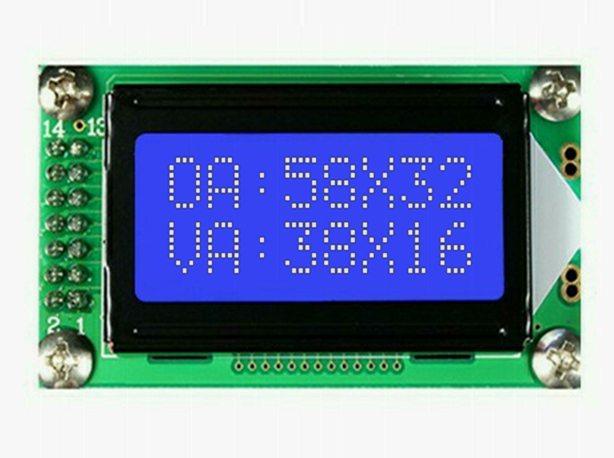

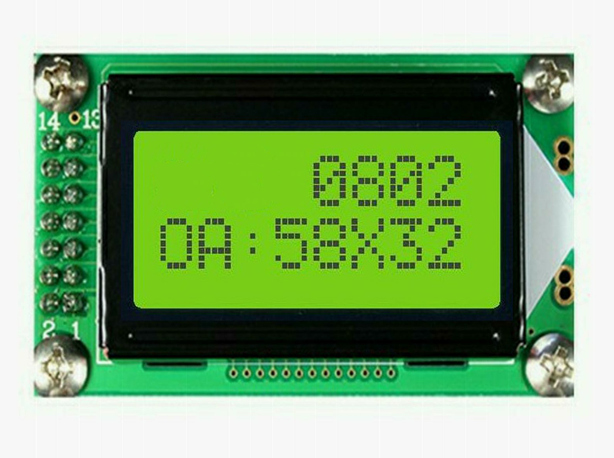

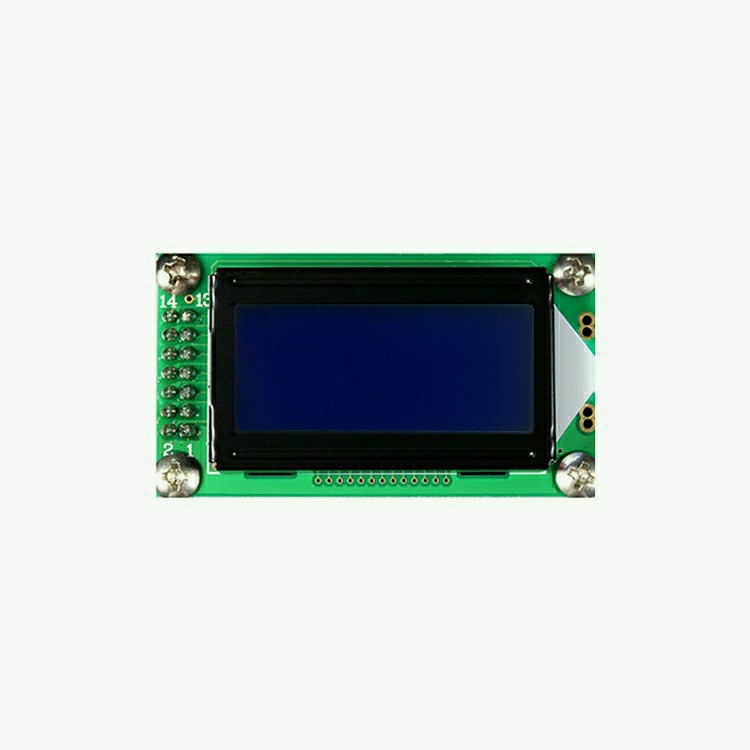

LCD Module 080202

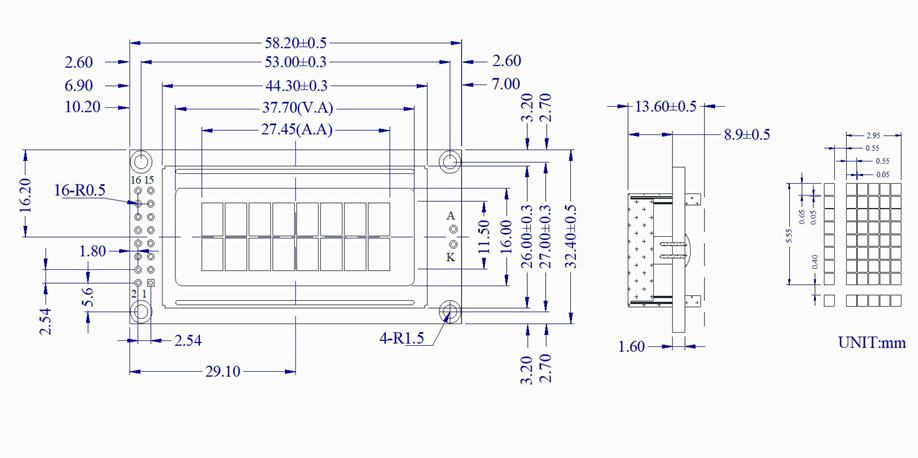

Module size (W*H*T): 58.2*32.4*13.6 mm
Viewing Area (W*H): 37.7*16.0 mm
Character size (W*H): 2.95*5.50 mm
Dot size (W*H): 0.55*0.65 mm
Weight: 26 g

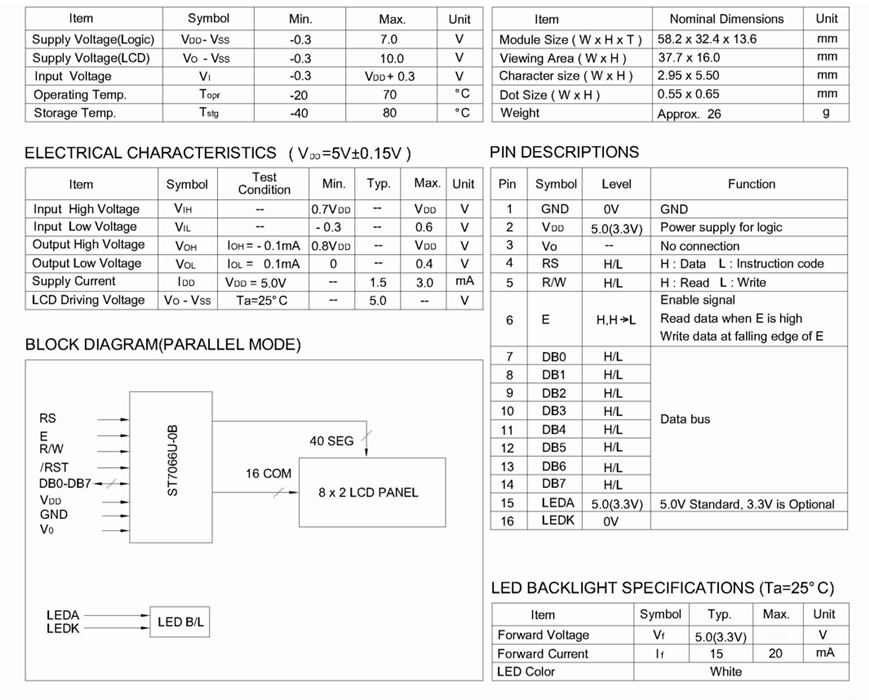

Supply voltage (Logic): -0.3 to 7.0V
Supply voltage (LCD): -0.3 to 10.0V
Operating temp: -20°C to 70°C
Storage temp: -40°C to 80°C
