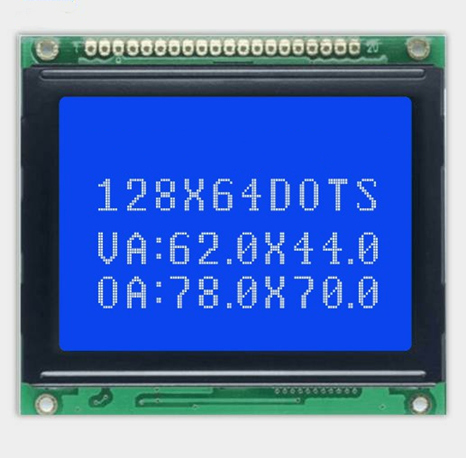

LCD Module 1286402

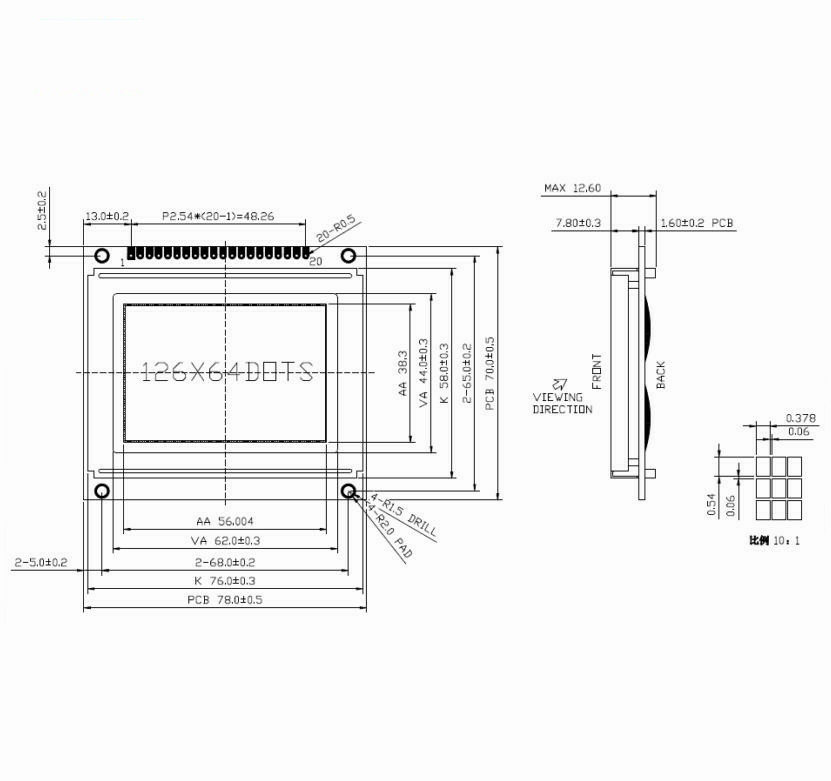

Module size (W*H*T): 78.0*70.0*12.6 mm
Viewing Area (W*H): 62.0*44.0 mm
Dot Pitch (W*H): 0.438*0.546 mm
Dot size (W*H): 0.378*0.540 mm
Weight: 75g
Supply voltage (Logic): -0.3 to 7.0V
Supply voltage (LCD): -0.3 to 25V
Operating temp: -20°C to 70°C
Storage temp: -25°C to 75°C
