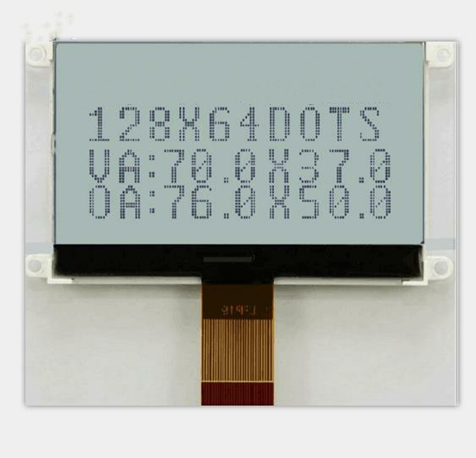

LCD Module 1286403

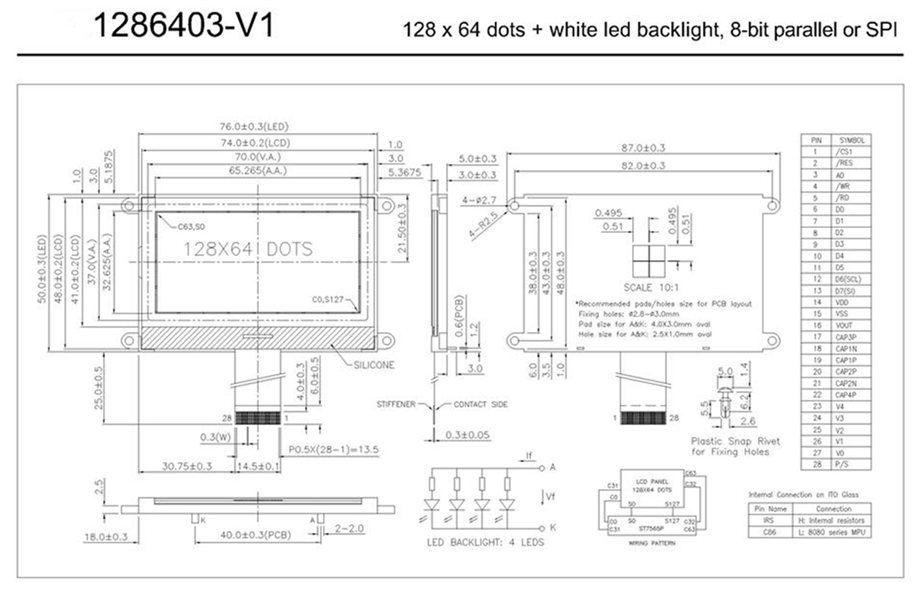

Module size (W*H*T): 87.0*50.0*8.0 mm
Viewing Area (W*H): 70.0*37.0 mm
Dot Pitch (W*H): 0.51*0.51 mm
Dot size (W*H): 0.495*0.495 mm
Weight: 28g

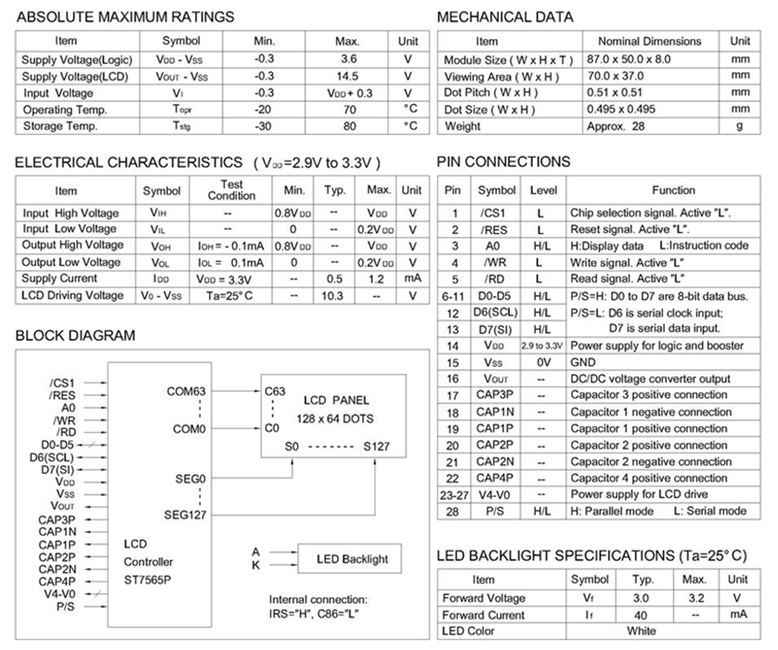

Supply voltage (Logic): -0.3 to 3.6V
Supply voltage (LCD): -0.3 to 14.5V
Operating temp: -20 to 70 degree
Storage temp: -30 to 80 degree
- Description
