LCD Module 12864NL

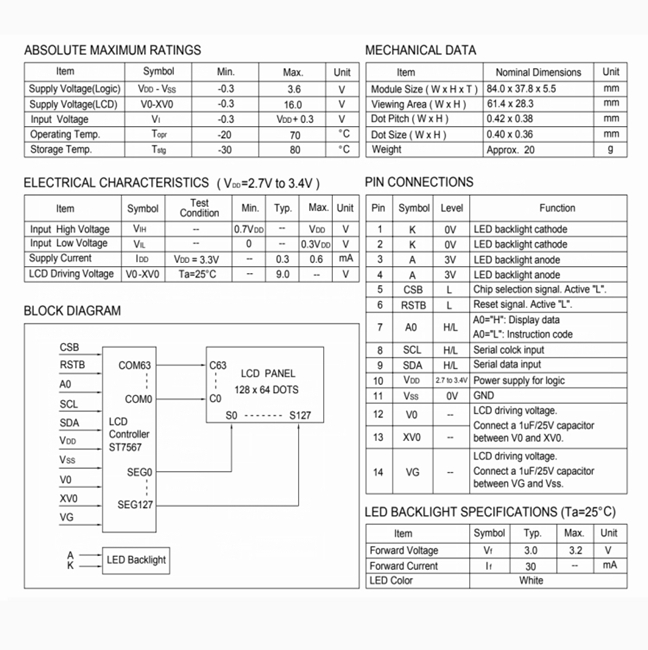

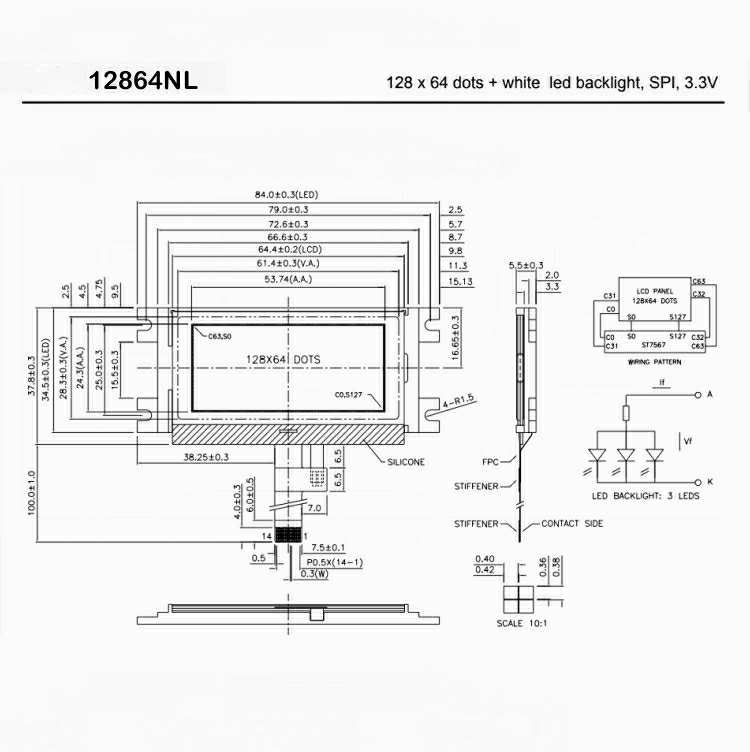

Module size (W*H*T): 84.0*37.8*5.5 mm
Viewing Area (W*H): 61.4*28.3 mm
Dot Pitch (W*H): 0.42*0.38 mm
Dot size (W*H): 0.40*0.36 mm
Weight: 20 g
Supply voltage (Logic): -0.3 to 3.6V
Supply voltage (LCD): -0.3 to 16V
Operating temp: -20°C to 70°C
Storage temp: -30°C to 80°C
