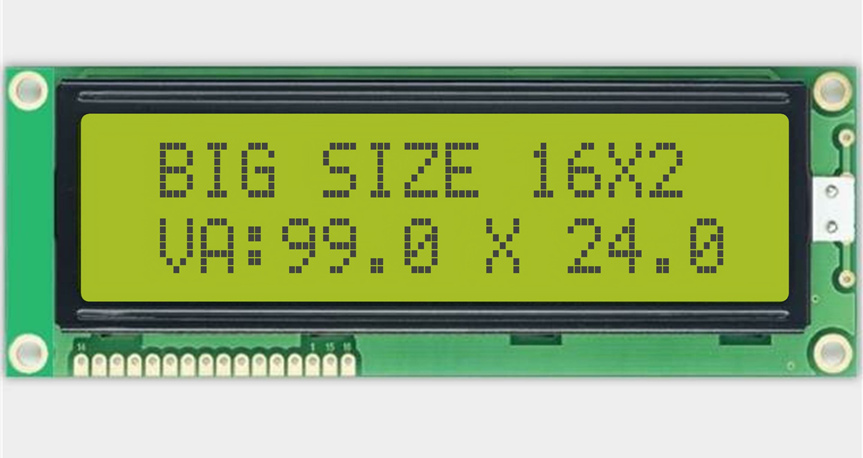

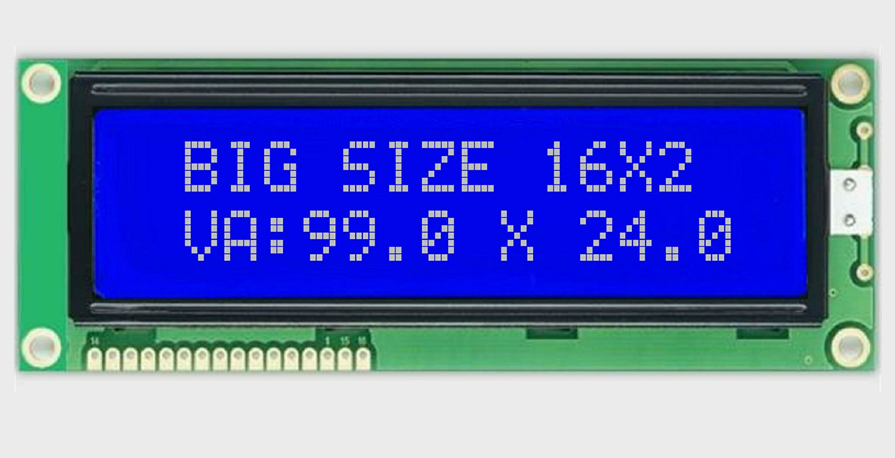

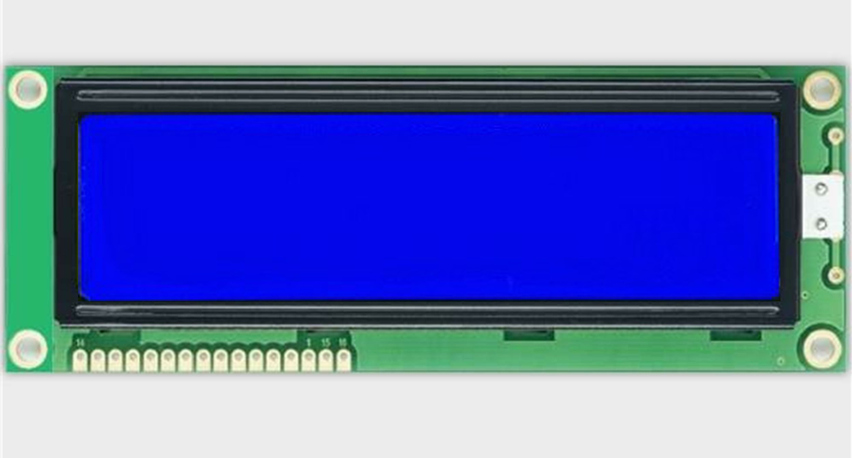

LCD Module 160203

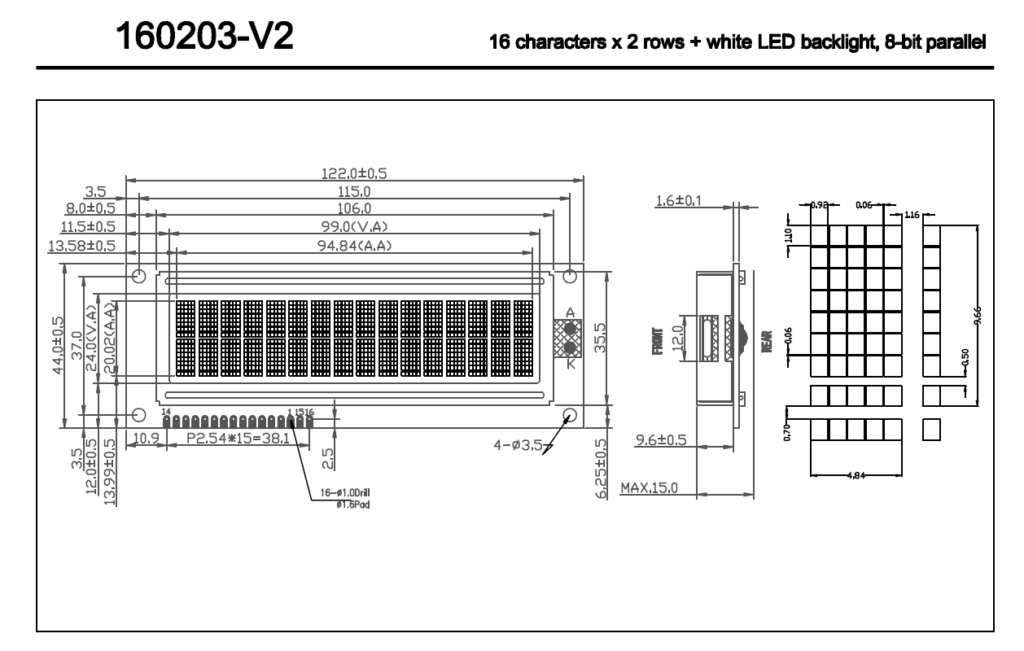

Module size (W*H*T): 122.0*44.0*15.0 mm
Viewing Area (W*H): 99.0*24.0 mm
Character size (W*H): 4.84*9.66 mm
Dot size (W*H): 0.92*1.10 mm
Weight: 65g
Supply voltage (Logic): -0.3 to 7.0V
Supply voltage (LCD): -0.3 to 10.0V
Operating temp: -20°C to 70°C
Storage temp: -40°C to 80°C
- Description
