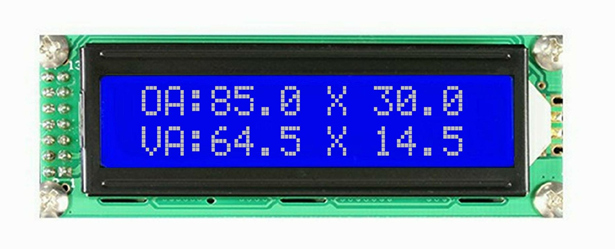

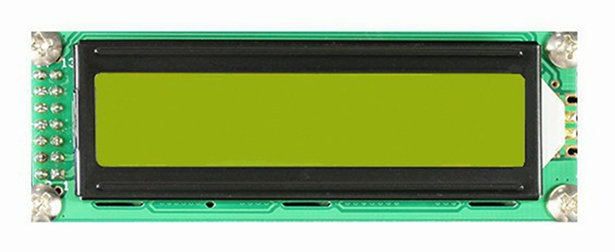

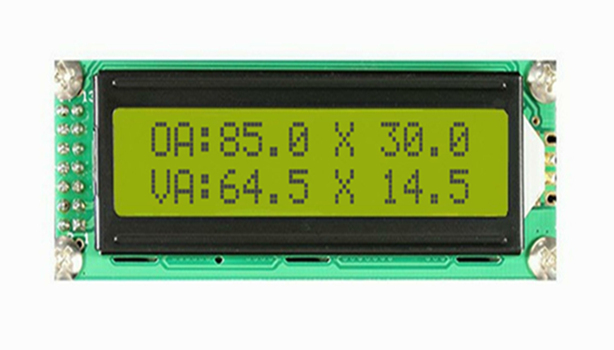

LCD Module 160206

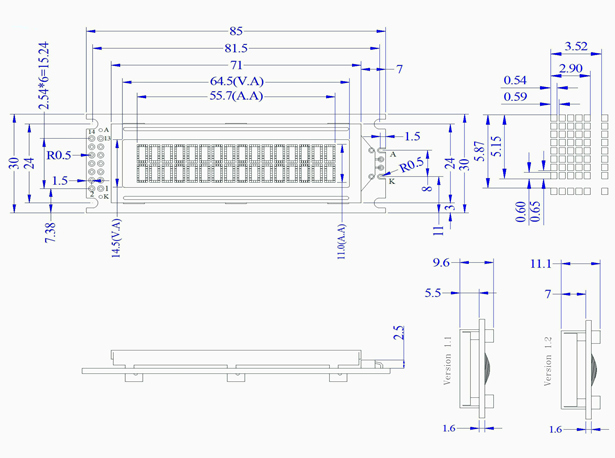

Module size (W*H*T): 85.0*30.0*9.6 or 11.0 mm
Viewing Area (W*H): 64.5*14.5 mm
Character size (W*H): 2.9*5.15 mm
Dot size (W*H): 0.54*0.6 mm
Weight: 26 or 36g

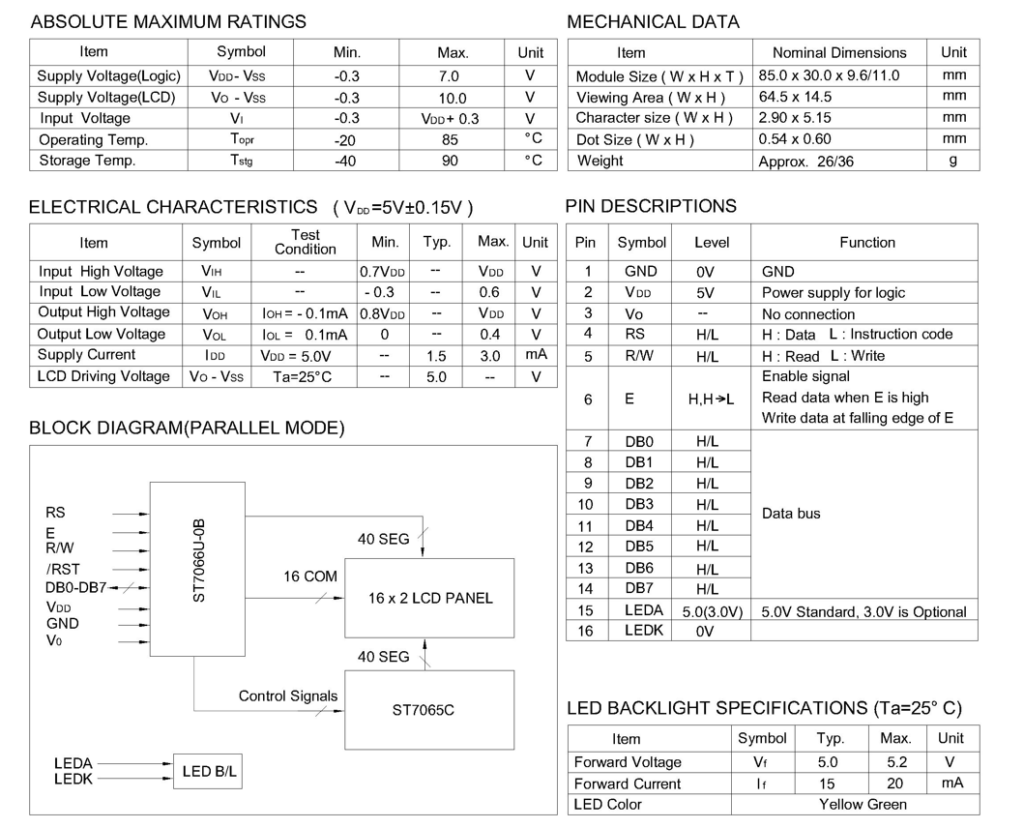

Supply voltage (Logic): -0.3 to 7.0V
Supply voltage (LCD): -0.3 to 10V
Operating temp: -20°C to 85°C
Storage temp: -40°C to 90°C
