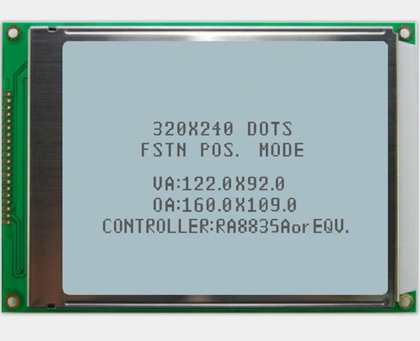

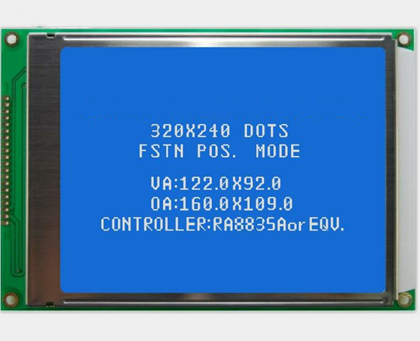

LCD Module 32024001-V1
Resolution: 320X240 dots
Model No.: DG32024001-V1

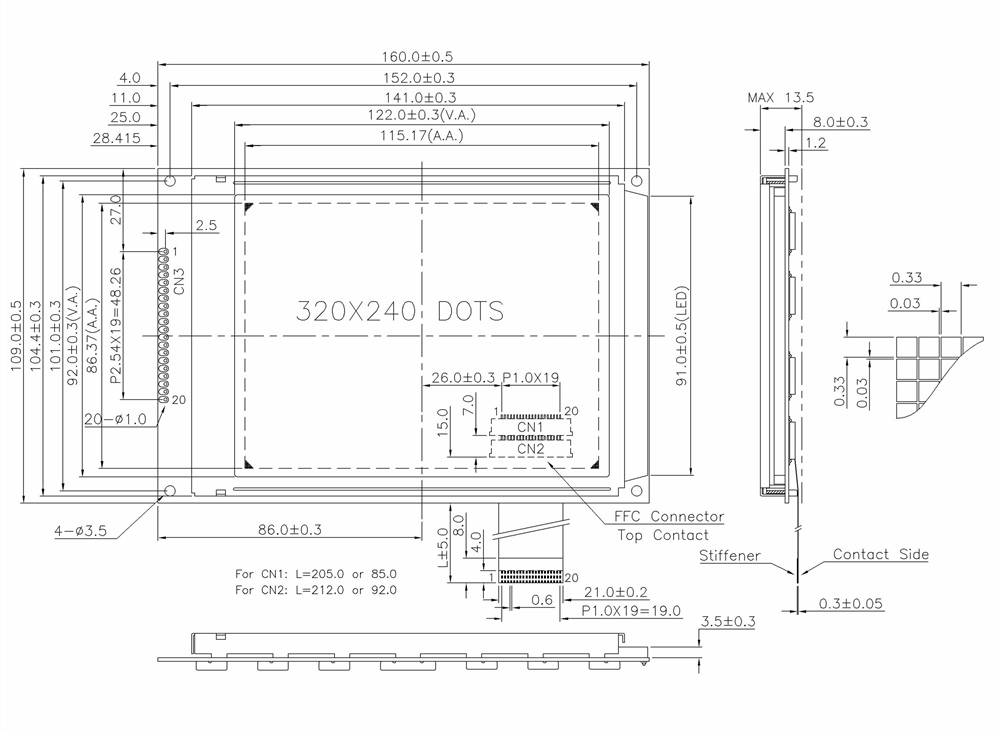

Outline Dimension: 160.0X109.0X13.5mm
Viewing Area: 122.0X92.0mm
Dot Size: 0.33X0.33mm
Dot Pitch: 0.36X0.36mm
Display Mode: STN Negative Blue, FSTN Black and White
Controller: RA8835A or EQV.
Interface Type: 8 bit Parallel
Backlight Type: LED White
Weight: 220g
