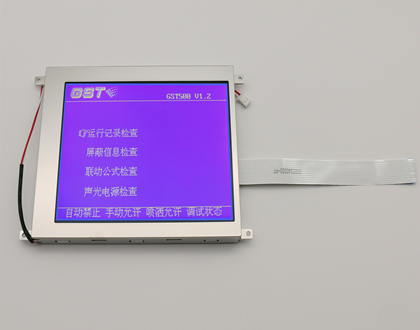

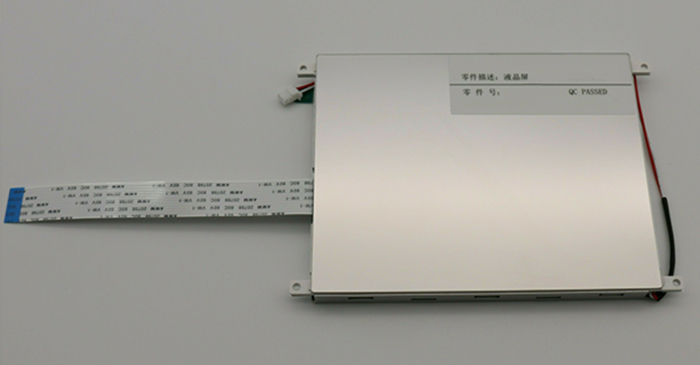

LCD Module 32024002-V1

Resolution: 320X240 dots
Model No.: DG32024002-V1
Application: Industrial Products

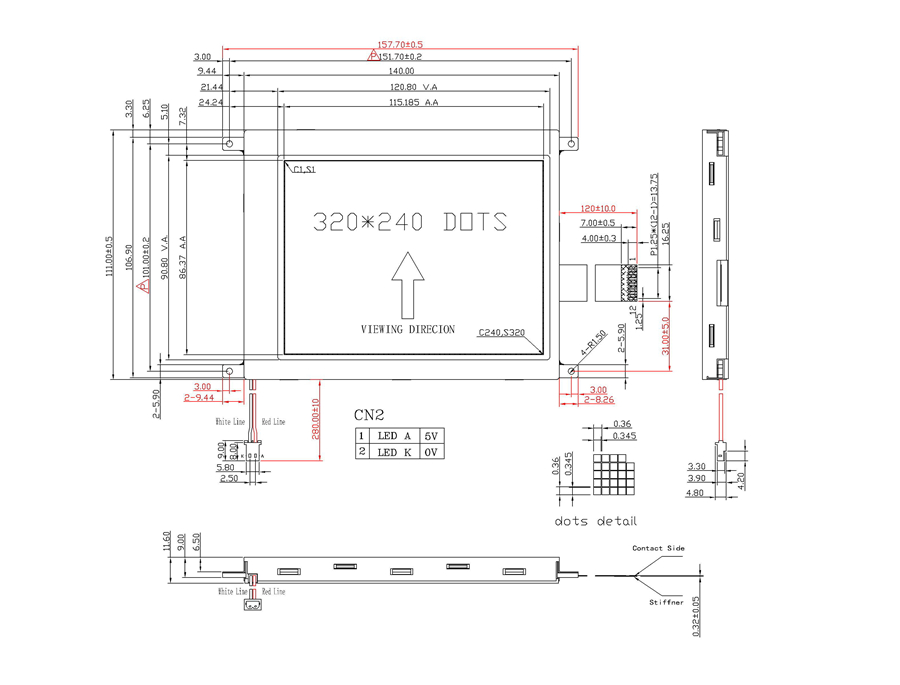

Outline Dimension: 157.7X111.0X11.6 mm
Viewing Area: 120.8X90.8 mm
Dot Size: 0.345X0.345 mm
Dot Pitch: 0.36X0.36 mm
Display Mode: STN Negative Blue/FSTN Positive or Negative
Viewing Direction: 6:00
Operating Temprature: -20~70C
Storage Temperature: -30~80C

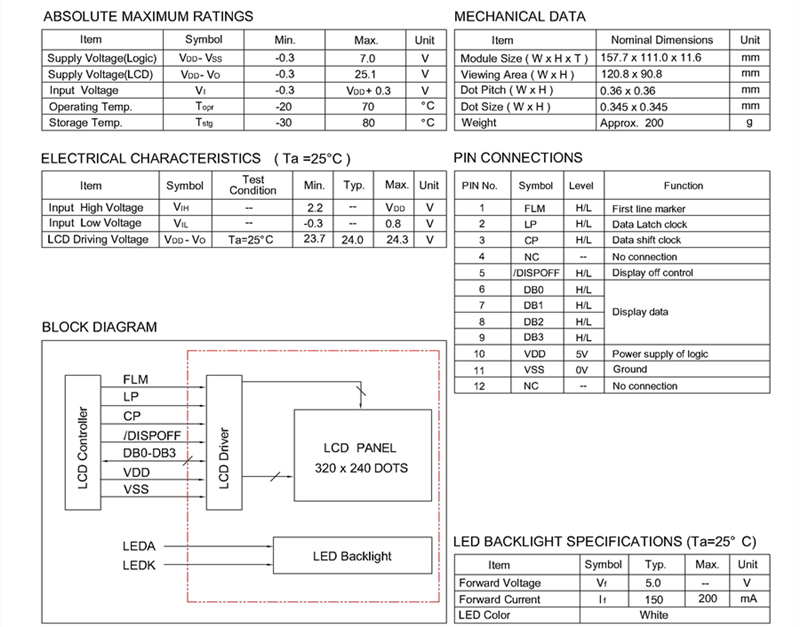

Interface: 4 bit Parallel
Driver IC: NT7701/NT7702
Backlight: LED White
Driving Voltage(VDD): 5V
Weight: Around 200g
