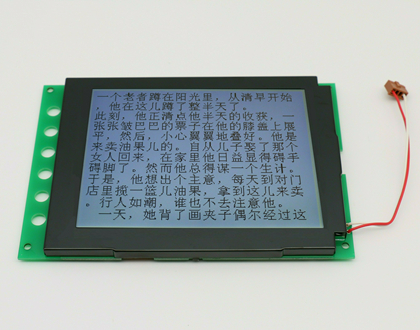

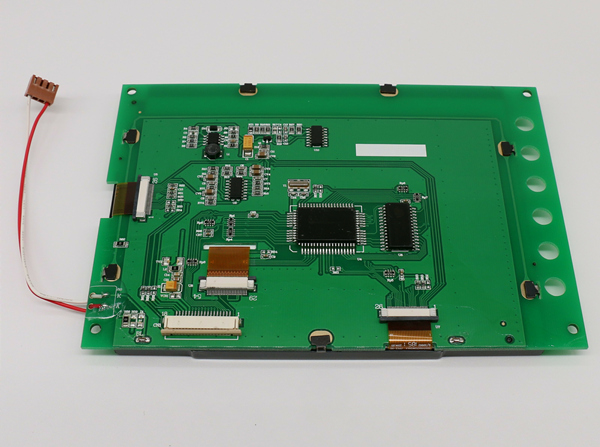

LCD Module 32024003-V1

Resolution: 320X240
Model No.: DG32024003-V1

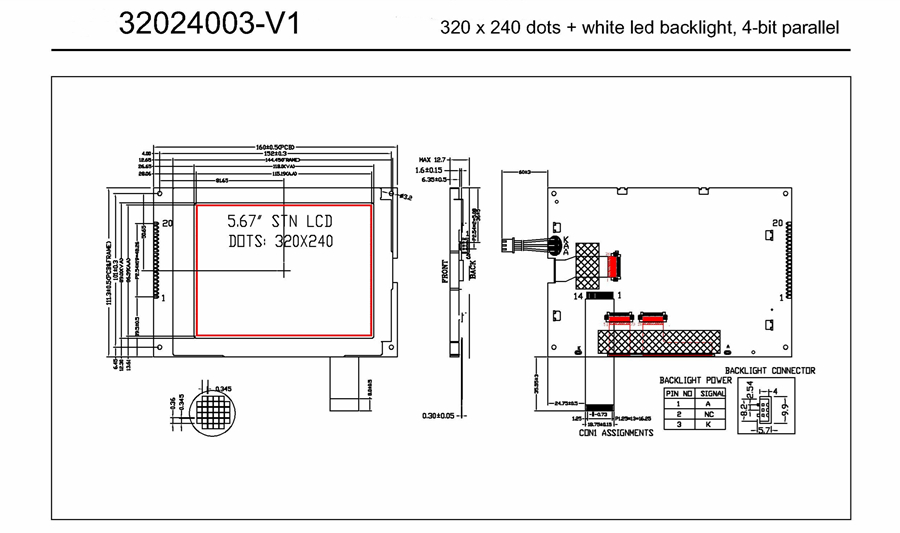

Outline Dimension: 160.0X111.3X12.7mm
Viewing Area: 118.0X89.0mm
Dot Size: 0.345X0.345mm
Dot Pitch: 0.36X0.36mm
Display Mode: FSTN positive transmissive, STN negative blue
Driving Method: 1/240duty 1/16bias 23.4V
Viewing Direction: 12:00
Operating Temperature: -10~80C
Storage Temperature: -30~80C
Interface Type: 14 pin FFC 4 bit parallel
Driving Voltage(VDD): 5V
Backlight Type: LED White
Weight: 200g
