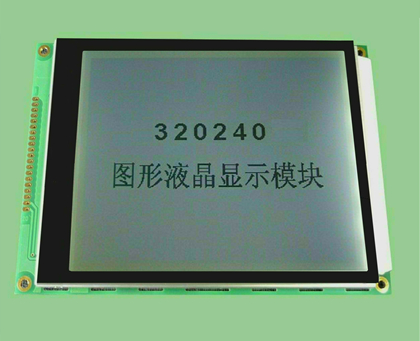

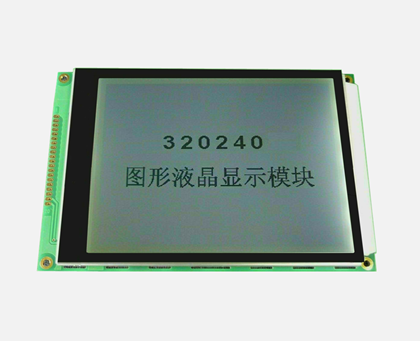

LCD Module 32024005-V1

Resolution: 320X240
Model No.: DG32024005-V1

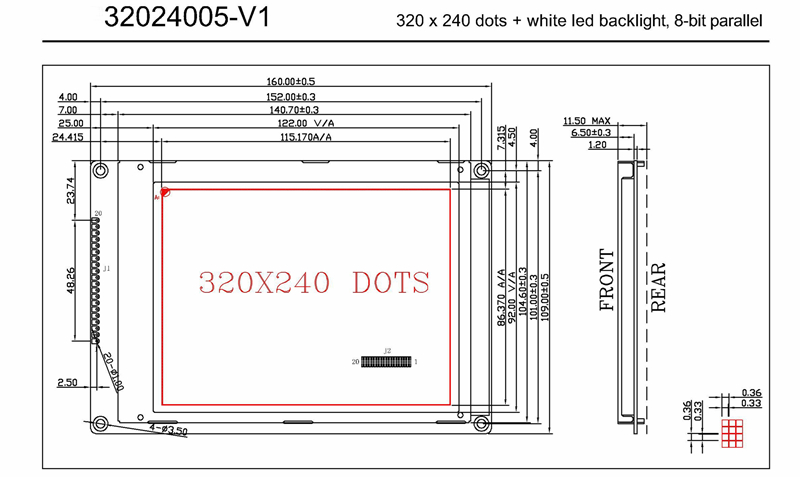

Outline Dimension: 160.7X109.0X11.5mm
Viewing Area: 122.0X92.0mmDot Size: 0.33X0.33mm
Dot Pitch: 0.36X0.36mm
Display Mode: FSTN positive transflective
Viewing Direction: 12:00
Operating Temperature: -20~70C
Storage Temperature: -30~80C

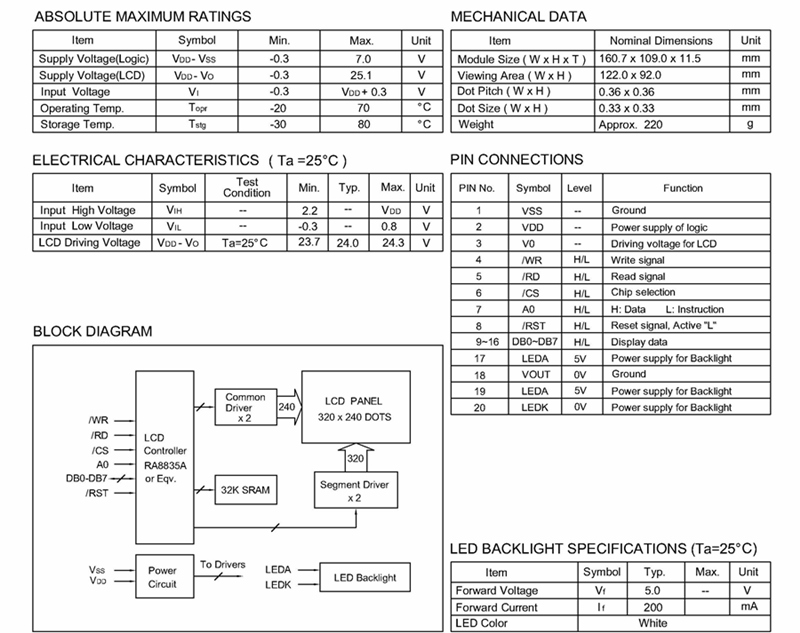

Controller: Built in RA8835A or EQV.
Interface Type: 8 bit parallel 20 Pin DIP type
Power supply VDD: 5V
Backlight: LED white
Weight: 220g
