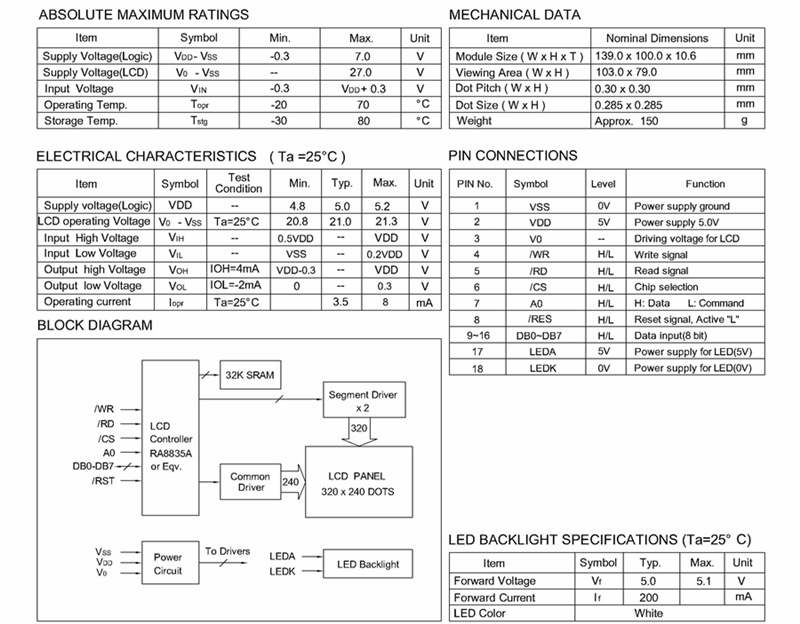

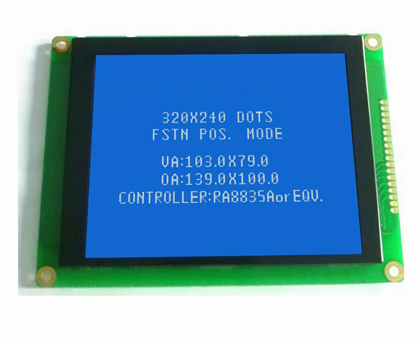

LCD Module 32024006-V1
Resolution: 320X240 dots
Model no.: DG32024006-V1

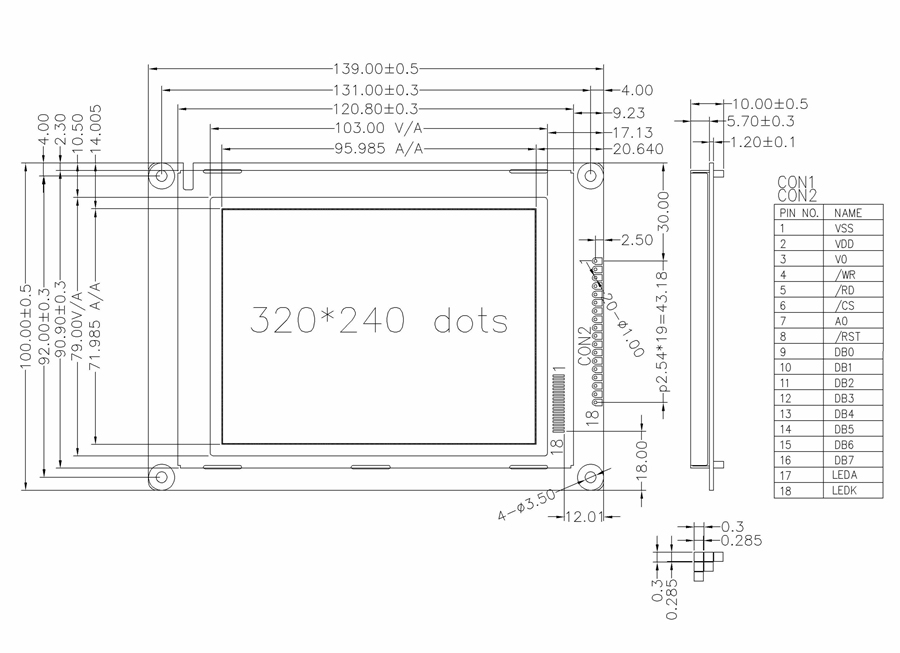

Outline dimension: 139.0x100.0x10.0mm
Viewing area: 103.0x79.0mm
Dot size: 0.285x0.285mm
Dot pitch: 0.30x0.30mm
Display mode: STN negative transmissive
Driving method: 1/240duty
Interface type: 8 bit parallel
Controller: RA8835A or EQV.
Driving voltage for logic VDD: 5.0V
Backlight: LED white
Weight: Appr. 150g
