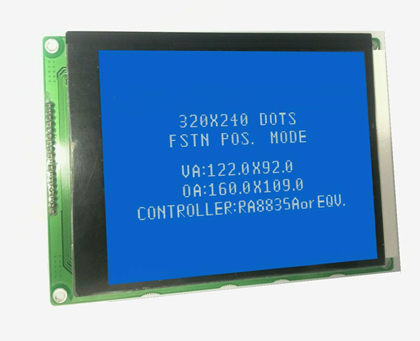

LCD Module 32024007-V1

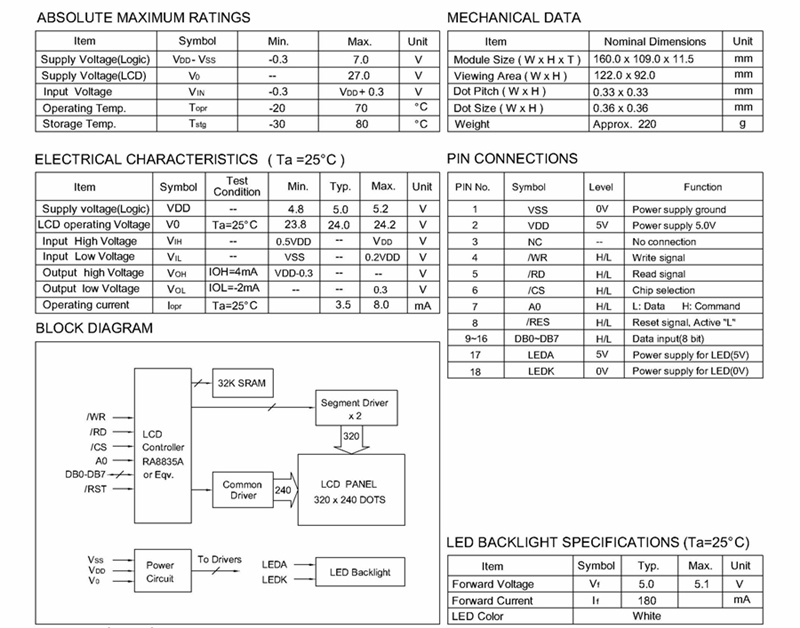

Resolution: 320x240 dots
Model no.: D32024007-V1

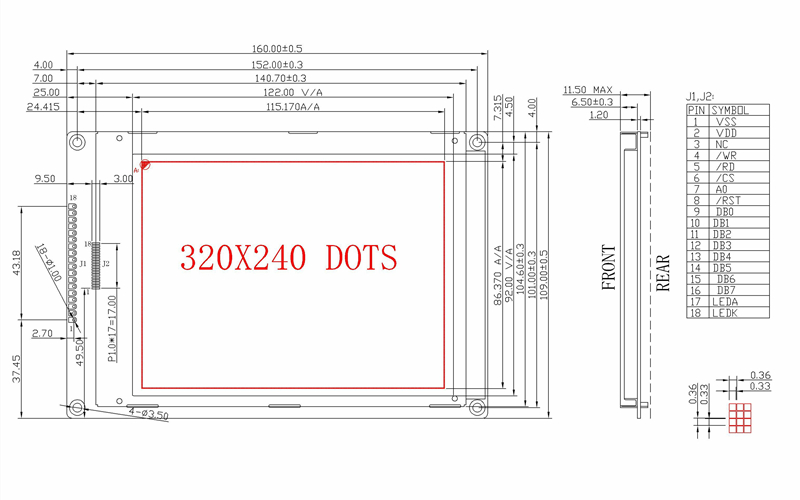

Outline dimension: 160.0x109.0x11.5mm
Viewing area: 122.0x92.0mm
Dot size: 0.33x0.33mm
Dot pitch: 0.36x0.36mm
Display mode: STN negative blue transmissive
Driving method: 1/240duty
Power supply for logic VDD: 5.0V
Controller: RA8835A or EQV.
Interface: 8 bit parallale
Backlight: LED white
Weight: 220g
