LCD1602-12244

Display Type: CH16*2lines
Polarizer: STN/Blue or Y-G/Negative or positive/Transmissive or Transflective
Driving Method: 1/16 Duty; 1/5 Bias VDD:5V
Viewing Direction: 6 O’clock
Operating Temperature: -20°C to 70°C
Storage Temperature: -30°C to 80°C
LED Backlight: Y-G or White

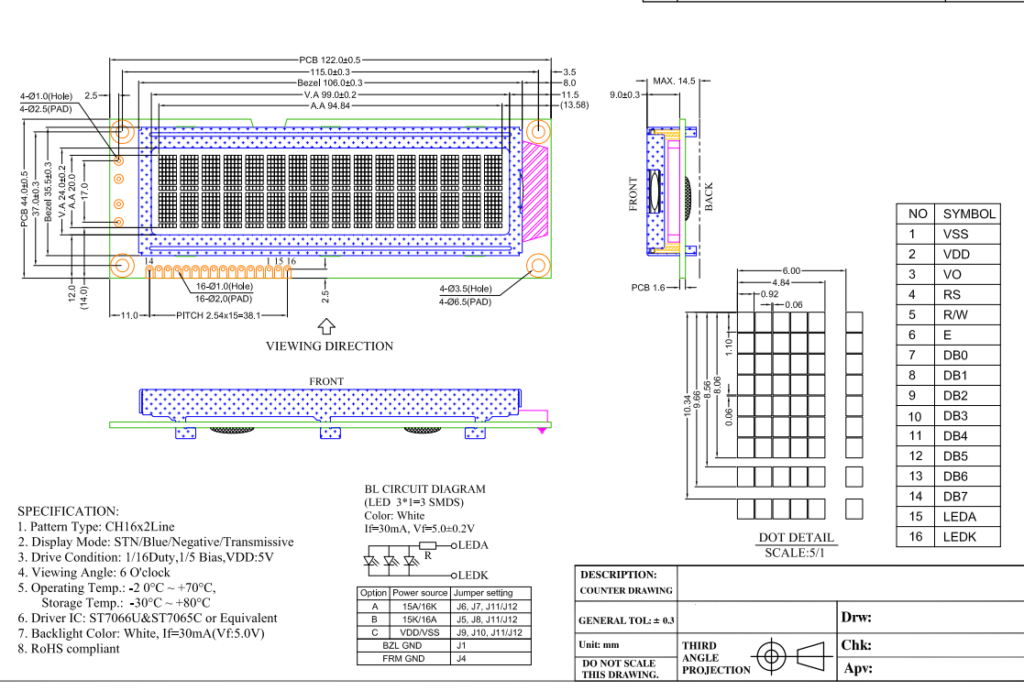

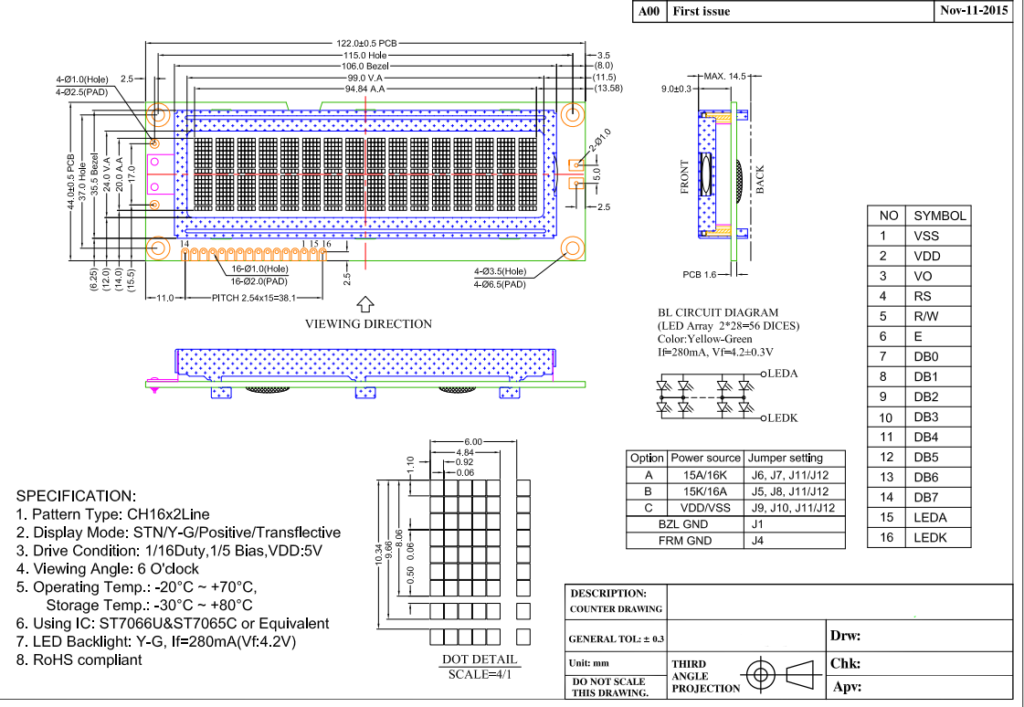

Outline Dimension: 122*44*14.5 mm
The product can be produced according to the customer’s specific requirements.
