128*64 2.7” OLED DG-128641325

Display Mode : Passive Matrix
Display Color : Monochrome (White / 16 Gray Scales)
Drive Duty : 1/64 Duty

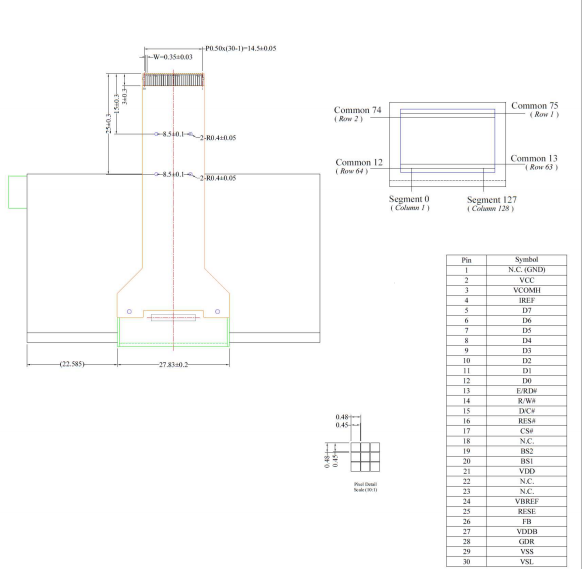

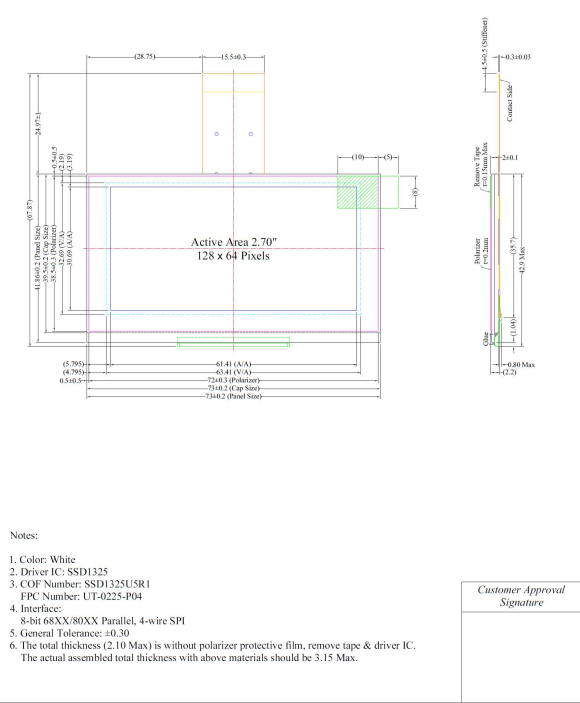

Outline Drawing : According to the annexed outline drawing
Number of Pixels : 128 × 64
Module Size : 73.00 × 67.87 × 2.675 (mm)
Panel Size : 73.00 × 41.86 × 2.00 (mm) including “Anti-Glare polarizer”
Active Area : 61.41 × 30.69 (mm)
Pixel Pitch : 0.48 × 0.48 (mm)
Pixel Size : 0.45 × 0.45 (mm)
Weight : T.B.D. (g) ± 10%
