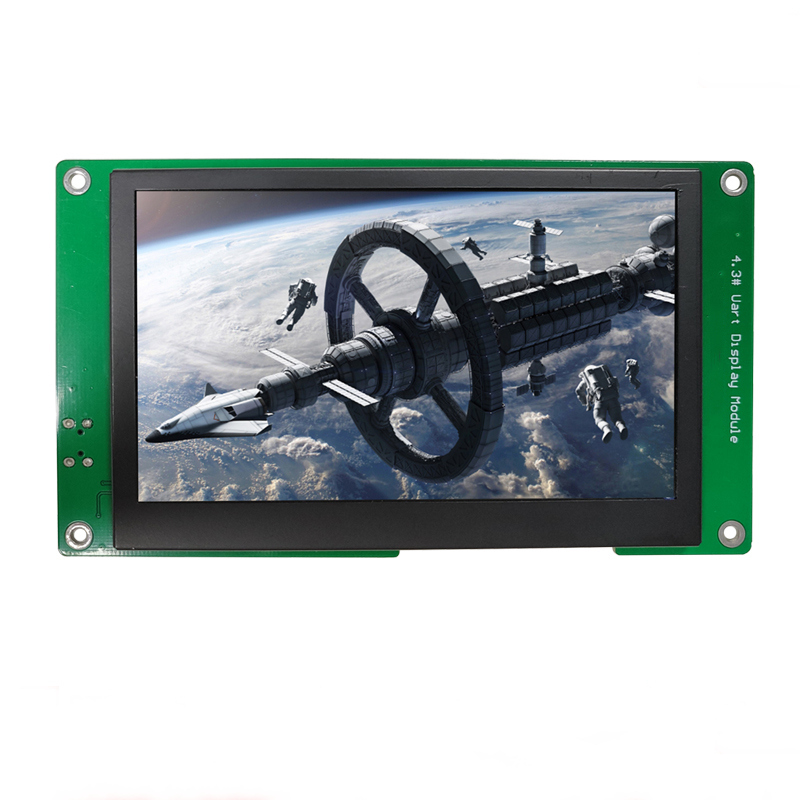

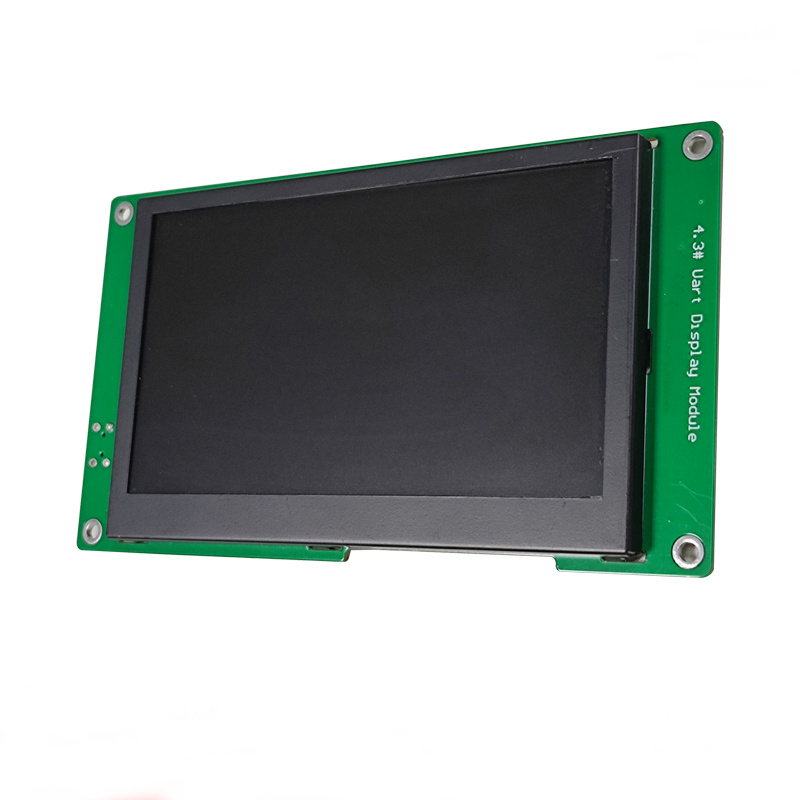

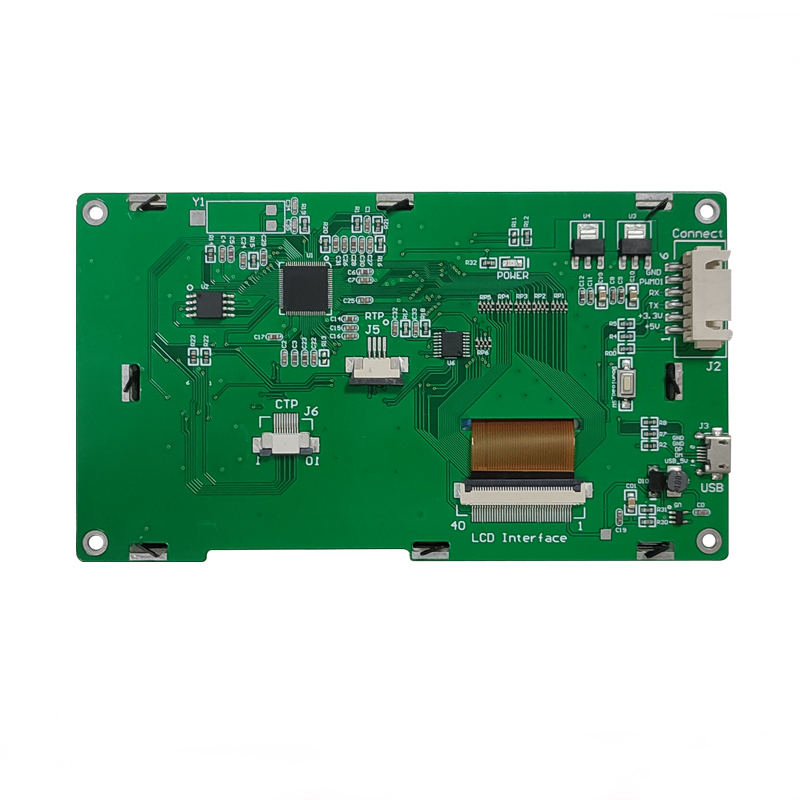

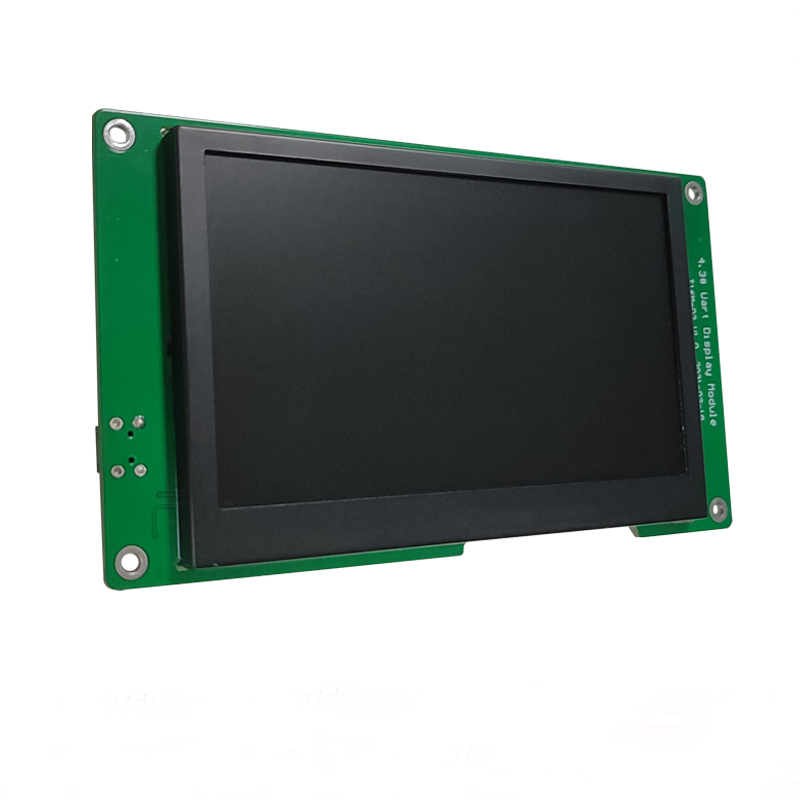

Serial port TFT display screen 4.3” 480*272
LCD type: 4.3 inch display TFT
Resolution: 480*272
Color: 65K,16Bit RGB
Voltage: 5.0V /3.3V 5.0V /3.3V
Power consumption: Back Light Power ON:3.5W; Back Light Power off:1.6W
Back light: LED
Brightness(cd/m²): 220
Back light life time(h) >20,000 >20,000
Contrast: 400:1
View Angle (L/R/T/B): 70/70/60/70 70/70/60/70
operating temperature: -20~+70℃ -20~+70℃
Storage temperature: -30~+80℃
