TFT LCD 4.3” 480*272

LCD Size: 4.3 inch
Dot Arrangement: 480x272/800x480
Color Filter Array: RGB vertical stripe
Display Mode: TN / Transmission / Normally White
Gray Scale Inversion Direction: 6 O'clock
Viewing Direction: 12 O'clock
LED Numbers: 7-LED
Brightness: 350cm/d2

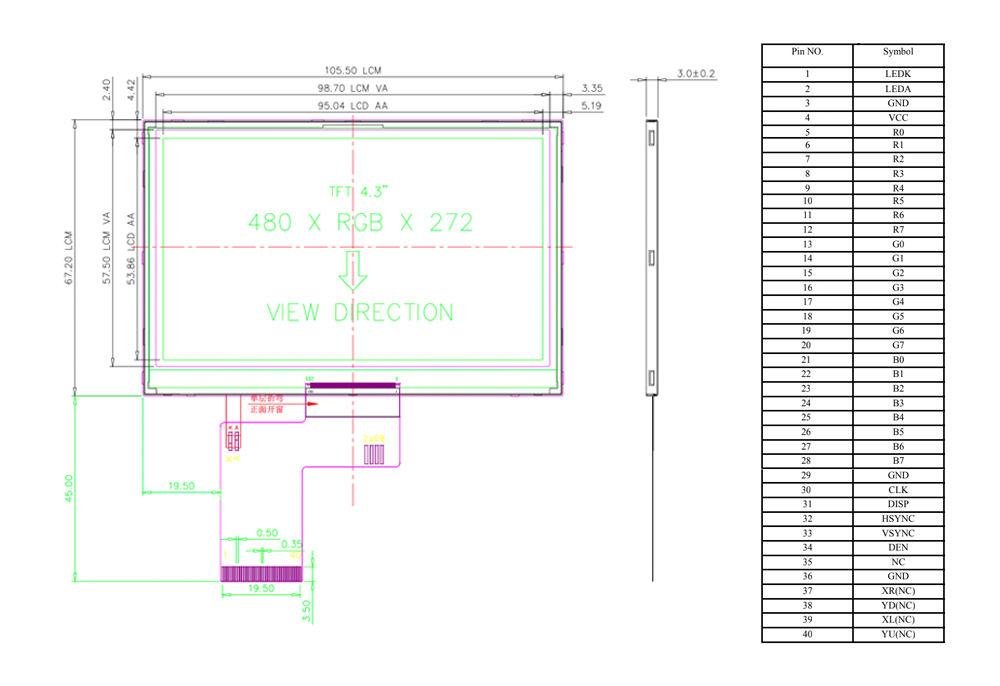

Module Size (with CTP): 105.5mm(W)*67.2mm(H)*5.0mm(T)
Active Area: 95.04mm(W)x53.856mm(H)
Interface : 24-bit RGB interface
Operating Temperature: -20 ~ +70℃
Storage Temperature: -30 ~ +80℃
