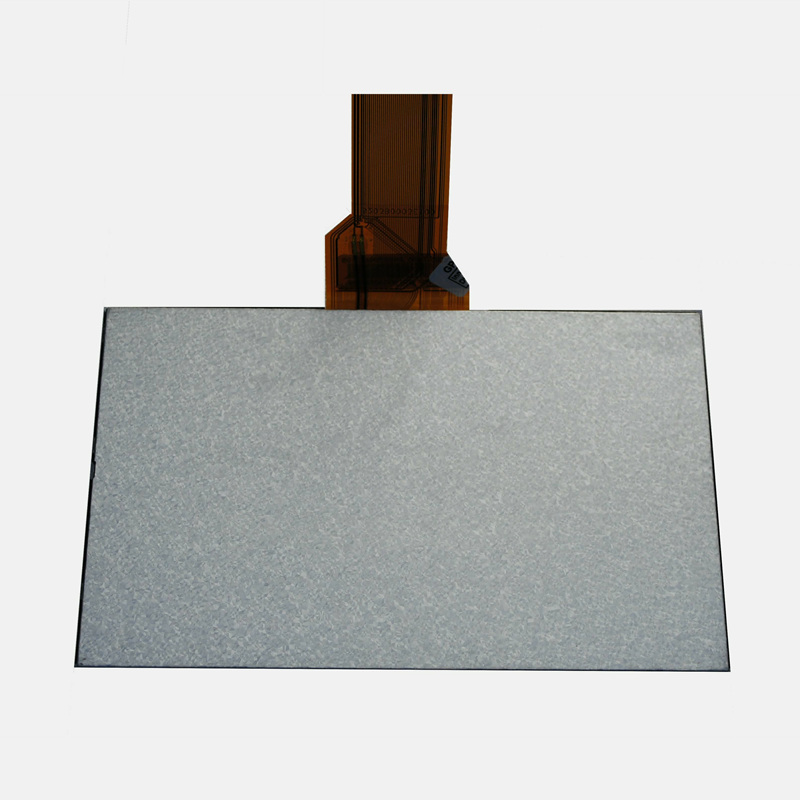

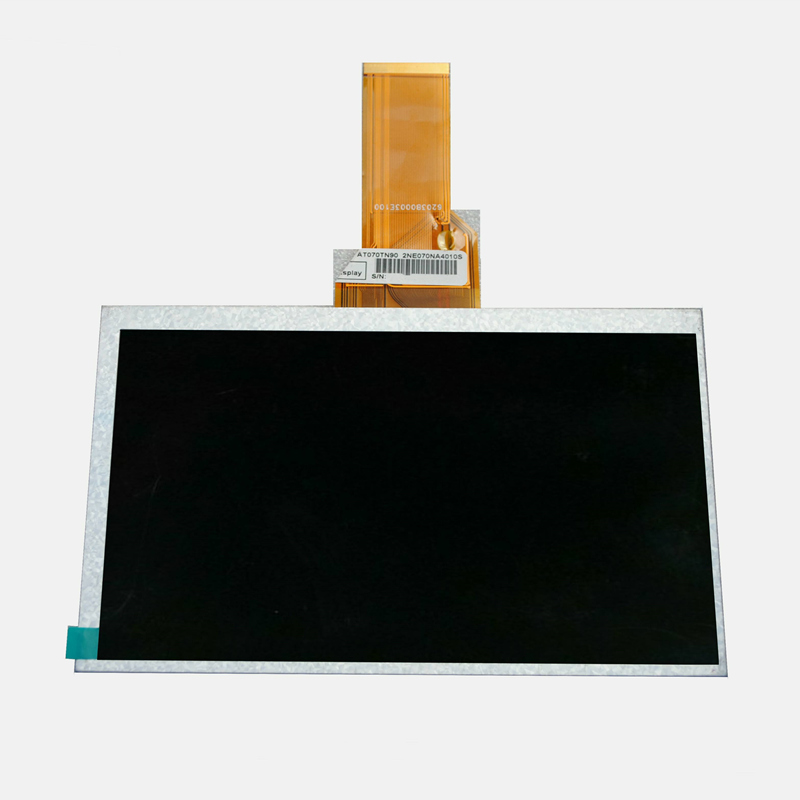

TFT LCD 7” 800*480

Display screen: 7 inch
Resolutions: 800x480

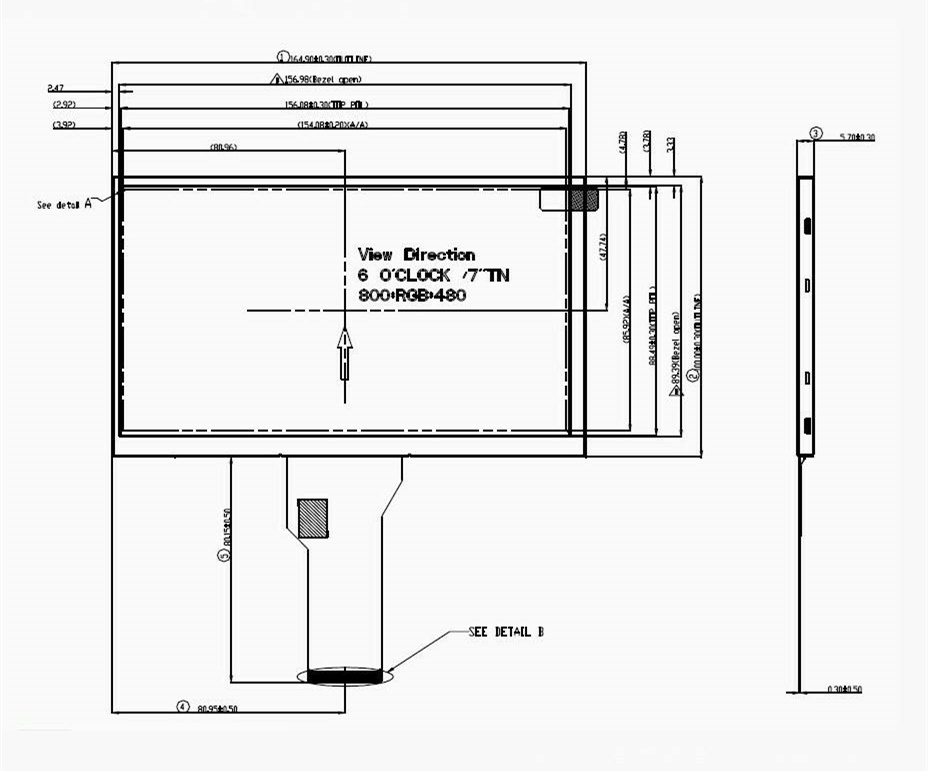

Outline dimension: 164.9x1000.0x5.7mm
Viewing direction: 6:00
Brightness: 200cd/m2
Contrast ratio: 500:1
Power supply VDD: 3.3V
Interface type: 24 bits RGB
Operating temp.: -10~60C
Life time: Over 20,000hours

Categories : Application , LCD Module
